Milling Home >

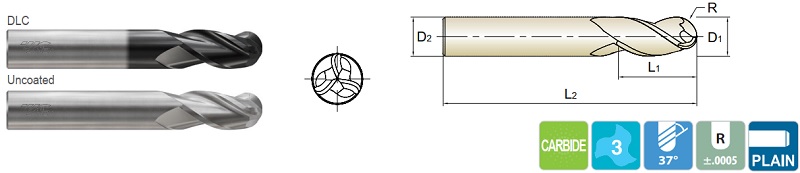

3-FLUTE STANDARD BALL NOSE - DLC coated and uncoated JAI58, E5I58

OD Radius of Ball Nose SD LOC OAL BallNose BallNose
D1 R (+-.0005) D2 L1 L3 DLC Uncoated
1/8 1/16 1/8 1/4 1-1/2 JAI58008 E5I58008
1/8 1/16 1/8 3/8 1-1/2 JAI58901 E5I58901
3/16 3/32 3/16 5/16 2 JAI58012 E5I58012
3/16 3/32 3/16 9/16 2 JAI58902 E5I58902
1/4 1/8 1/4 3/8 2 JAI58016 E5I58016
1/4 1/8 1/4 5/8 2-1/2 JAI58903 E5I58903
5/16 5/32 5/16 5/8 2-1/2 JAI58020 E5I58020
5/16 5/32 5/16 1-1/4 3-1/2 JAI58904 E5I58904
3/8 3/16 3/8 1/2 2 JAI58024 E5I58024
3/8 3/16 3/8 1 2-1/2 JAI58905 E5I58905
3/8 3/16 3/8 1-1/2 3-1/2 JAI58906 E5I58906
7/16 7/32 7/16 9/16 2-1/2 JAI58028 E5I58028
7/16 7/32 7/16 1-1/4 2-3/4 JAI58907 E5I58907
1/2 1/4 1/2 5/8 2-1/2 JAI58032 E5I58032
1/2 1/4 1/2 1 3 JAI58908 E5I58908
1/2 1/4 1/2 1-5/8 4 JAI58909 E5I58909
1/2 1/4 1/2 2 4 JAI58910 E5I58910
5/8 5/16 5/8 3-4 3 JAI58040 E5I58040
5/8 5/16 5/8 1-5/8 3-1/2 JAI58911 E5I58911
5/8 5/16 5/8 2-1/2 5 JAI58912 E5I58912
3/4 3/8 3/4 1 3 JAI58048 E5I58048
3/4 3/8 3/4 1-5/8 4 JAI58913 E5I58913
1 1/2 1 1-1/4 4 JAI58064 E5I58064
1 1/2 1 2 5 JAI58914 E5I58914
