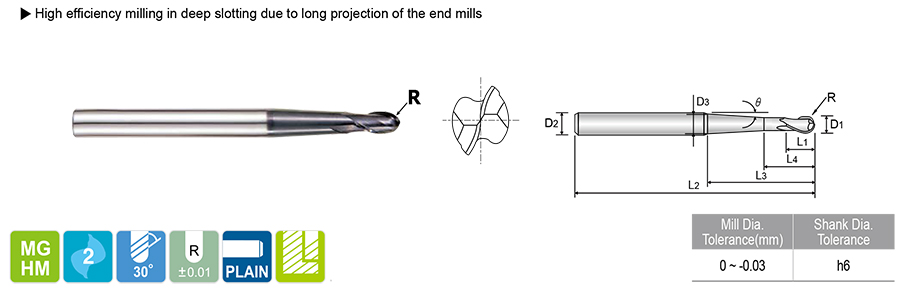

2 FLUTE BALL NOSE with TAPER NECK X-POWER PRO GM902 - Metric

  2 FLUTE BALL NOSE with TAPER NECK X-POWER PRO GM902 - Metric
EDP Radius of Ball Nose R (±.001) Mill Diameter (D1) Shank Diameter (D2) Length of Cut (L1) Under Neck Parallel Length (L4) Length Below Shank (L3) Overall Length (L2) Neck Diameter (D3) Taper Neck Angle(θ)
GM902010R0.51.0624236021° 30'
GM902901R0.51.062423604.3
GM902902R0.51.062442805
GM902020R1.02.064623602.91° 30'
GM902903R1.02.064623605
GM902904R1.02.064641805.7
GM902030R1.53.066832705.6
GM902905R1.53.066852905.31° 30'
GM902040R2.04.0681028705.9
GM902906R2.04.06810499061° 30'
GM902060R3.06.08121534908
GM902908R3.06.0812155311081° 30'
GM902080R4.08.01014173610010
GM902909R4.08.010141755120101° 30'
