YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

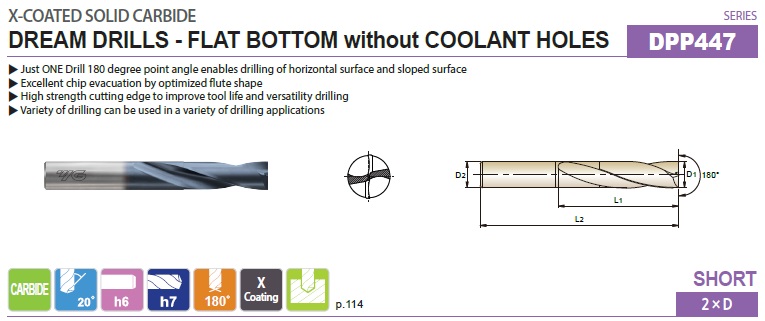

EDP No.	Drill Diameter			Shank Diameter MM	**Flute Length MM	Overall Length MM
TiAIN	Metric (D1)	Fraction (D1)	Decimal (D1)	D2	L1	L2
DPP447030	3.0		0.1181	6	16	50
DPP447031	3.1		0.1220	6	16	50
DPP447008F	3.175	1/8	0.1250	6	16	50
DPP447032	3.2		0.1260	6	16	50
DPP447033	3.3		0.1299	6	16	50
DPP447034	3.4		0.1339	6	18	50
DPP447035	3.5		0.1378	6	18	50
DPP447036	3.6		0.1417	6	18	50
DPP447037	3.7		0.1457	6	18	50
DPP447038	3.8		0.1496	6	18	50
DPP447039	3.9		0.1535	6	18	50
DPP447010F	3.968	5/32	0.1562	6	18	50
DPP447040	4.0		0.1575	6	18	50
DPP447041	4.1		0.1614	6	20	60
DPP447042	4.2		0.1654	6	20	60
DPP447043	4.3		0.1693	6	20	60
DPP447044	4.4		0.1732	6	20	60
DPP447045	4.5		0.1772	6	22	60
DPP447046	4.6		0.1811	6	22	60
DPP447047	4.7		0.1850	6	22	60
DPP447012F	4.762	3/16	0.1875	6	22	60
DPP447048	4.8		0.1890	6	22	60
DPP447049	4.9		0.1929	6	22	60
DPP447050	5.0		0.1969	6	22	60
DPP447051	5.1		0.2008	6	24	60
DPP447052	5.2		0.2047	6	24	60
DPP447053	5.3		0.2087	6	24	60
DPP447054	5.4		0.2126	6	24	60
DPP447055	5.5		0.2165	6	24	60
DPP447014F	5.556	7/32	0.2187	6	24	60
DPP447056	5.6		0.2205	6	24	60
DPP447057	5.7		0.2244	6	26	60
DPP447058	5.8		0.2283	6	26	60
DPP447059	5.9		0.2323	6	26	60
DPP447060	6.0		0.2362	6	26	60
DPP447061	6.1		0.2402	8	28	70
DPP447062	6.2		0.2441	8	28	70
DPP447063	6.3		0.2480	8	28	70
DPP447016F	6.350	1/4	0.2500	8	30	70
DPP447064	6.4		0.2520	8	30	70
DPP447065	6.5		0.2559	8	30	70
DPP447066	6.6		0.2598	8	30	70
DPP447067	6.7		0.2638	8	30	70
DPP447068	6.8		0.2677	8	30	70
DPP447069	6.9		0.2717	8	30	70
DPP447070	7.0		0.2756	8	30	70
DPP447071	7.1		0.2795	8	34	70
DPP447018F	7.143	9/32	0.2812	8	34	70
DPP447072	7.2		0.2835	8	34	70
DPP447073	7.3		0.2874	8	34	70
DPP447074	7.4		0.2913	8	34	70
DPP447075	7.5		0.2953	8	34	70
DPP447076	7.6		0.2992	8	34	70
DPP447077	7.7		0.3031	8	34	70
DPP447078	7.8		0.3071	8	34	70
DPP447079	7.9		0.3110	8	34	70
DPP447020F	7.937	5/16	0.3125	8	34	70
DPP447080	8.0		0.3150	8	34	70
DPP447081	8.1		0.3189	10	38	80
DPP447082	8.2		0.3228	10	38	80
DPP447083	8.3		0.3268	10	38	80
DPP447021F	8.334	21/64	0.3281	10	38	80
DPP447084	8.4		0.3307	10	38	80
DPP447085	8.5		0.3346	10	38	80
DPP447086	8.6		0.3386	10	38	80
DPP447087	8.7		0.3425	10	40	80
DPP447088	8.8		0.3465	10	40	80
DPP447089	8.9		0.3504	10	40	80
DPP447090	9.0		0.3543	10	40	80
DPP447091	9.1		0.3583	10	42	80
DPP447023F	9.128	23/64	0.3594	10	42	80
DPP447092	9.2		0.3622	10	42	80
DPP447093	9.3		0.3661	10	42	80
DPP447094	9.4		0.3701	10	42	80
DPP447095	9.5		0.3740	10	42	80
DPP447024F	9.525	3/8	0.3750	10	42	80
DPP447096	9.6		0.3780	10	42	80
DPP447097	9.7		0.3819	10	45	80
DPP447098	9.8		0.3858	10	45	80
DPP447099	9.9		0.3898	10	45	80
DPP447100	10.0		0.3937	10	45	80
DPP447102	10.2		0.4016	12	46	90
DPP447026F	10.318	13/32	0.4062	12	46	90
DPP447105	10.5		0.4134	12	48	90
DPP447108	10.8		0.4252	12	48	90
DPP447110	11.0		0.4331	12	48	90
DPP447028F	11.112	7/16	0.4375	12	50	90
DPP447115	11.5		0.4528	12	50	90
DPP447029F	11.509	29/64	0.4531	12	50	90
DPP447118	11.8		0.4646	12	52	90
DPP447119	11.9		0.4685	12	52	90
DPP447030F	11.906	15/32	0.4687	12	52	90
DPP447120	12.0		0.4724	12	52	90
DPP447125	12.5		0.4921	14	54	100
DPP447127	12.7	1/2	0.5000	14	56	100
DPP447130	13.0		0.5118	14	56	100
DPP447135	13.5		0.5315	14	58	100
DPP447140	14.0		0.5512	14	58	100
DPP447036F	14.287	9/16	0.5625	16	62	105
DPP447145	14.5		0.5709	16	62	105
DPP447150	15.0		0.5906	16	62	105
DPP447155	15.5		0.6102	16	64	115
DPP447040F	15.875	5/8	0.6250	16	64	115
DPP447160	16.0		0.6299	16	64	115
DPP447165	16.5		0.6496	18	70	125
DPP447170	17.0		0.6693	18	70	125
DPP447044F	17.462	11/16	0.6875	18	70	125
DPP447175	17.5		0.6890	18	70	125
DPP447180	18.0		0.7087	18	70	125
DPP447185	18.5		0.7283	20	75	135
DPP447190	19.0		0.7480	20	75	135
DPP447048F	19.050	3/4	0.7500	20	75	135
DPP447195	19.5		0.7677	20	75	145
DPP447200	20.0		0.7874	20	75	145
