Tapping	Home >

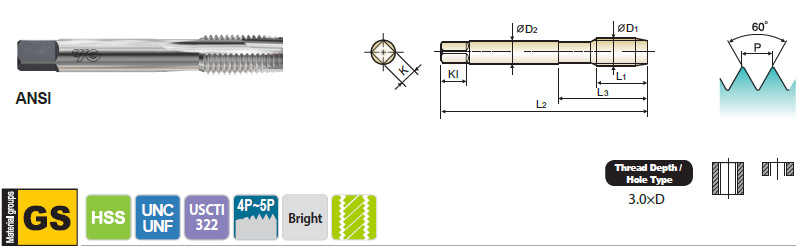

SPIRAL POINT TAPS SCREW THREAD INSERT for GENERAL PURPOSE

SPIRAL POINT TAPS SCREW THREAD INSERT for GENERAL PURPOSE

EDP No.	Size	Thread Per Inch	Thread Per Inch	Limit	No. of Flute
Bright	Size	UNC	UNF	Limit	No. of Flute
T7436082	2	56	-	H2	2
T7436122	3	48	-	H2	2
T7436161	4	40	-	H1	2
T7436162	4	40	-	H2	2
T7436182	4	-	48	H2	2
T7436202	5	40	-	H2	2
T7436242	6	32	-	H2	2
T7436243	6	32	-	H3	2
T7436262	6	-	40	H2	2
T7436282	8	32	-	H2	2
T7436283	8	32	-	H3	2
T7436302	8	-	36	H2	2
T7436322	10	24	-	H2	2
T7436323	10	24	-	H3	2
T7436342	10	-	32	H2	2
T7436343	10	-	32	H3	2
T7436402	1/4	20	-	H2	3
T7436403	1/4	20	-	H3	3
T7436422	1/4	-	28	H2	3
T7436423	1/4	-	28	H3	3
T7436443	5/16	18	-	H3	3
T7436444	5/16	18	-	H4	3
T7436462	5/16	-	24	H2	3
T7436463	5/16	-	24	H3	3
T7436483	3/8	16	-	H3	3
T7436484	3/8	16	-	H4	3
T7436502	3/8	-	24	H2	3
T7436503	3/8	-	24	H3	3
T7436523	7/16	14	-	H3	3
T7436524	7/16	14	-	H4	3
T7436543	7/16	-	20	H3	3
T7436544	7/16	-	20	H4	3
T7436563	1/2	13	-	H3	4
T7436564	1/2	13	-	H4	4
T7436583	1/2	-	20	H3	4
T7436584	1/2	-	20	H4	4
