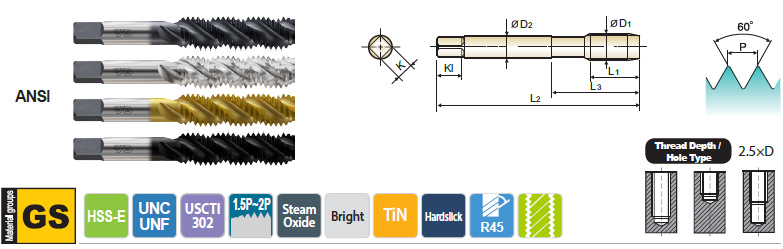

ANSI SPIRAL FLUTED TAPS MULTI PURPOSE
View TAP SELECTOR / CUTTING DATA
 Standard Taps: Spiral Fluted Bottoming Style -for Multi Purpose
Size Thread / Inch No. of Flute Limits Steam Oxide Bright Finish TiN Coated Hardslick Coated
UNC UNF EDP No. EDP No. EDP No. EDP No.
4 40   3 H2 C2162 C3162 C4162 D9162
5 40   3 H2 C2202 C3202 C4202 D9202
6 32   3 H3 C2243 C3243 C4243 D9243
8 32   3 H3 C2283 C3283 C4283 D9283
10 24   3 H3 C2323 C3323 C4323 D9323
    32 3 H3 C2343 C3343 C4343 D9343
1/4 20   3 H3 C2403 C3403 C4403 D9403
      3 H5 C2405 C3405 C4405 D9405
    28 3 H3 C2423 C3423 C4423 D9423
5/16 18   3 H3 C2443 C3443 C4443 D9443
      3 H5 C2445 C3445 C4445 D9445
    24 3 H3 C2463 C3463 C4463 D9463
3/8 16   3 H3 C2483 C3483 C4483 D9483
      3 H5 C2485 C3485 C4485 D9485
    24 3 H3 C2503 C3503 C4503 D9503
7/16 14   3 H3 C2523 C3523 C4523 D9523
      3 H5 C2525 C3525 C4525 D9525
    20 3 H3 C2543 C3543 C4543 D9543
      3 H5 C2545 C3545 C4545 D9545
1/2 13   3 H3 C2563 C3563 C4563 D9563
      3 H5 C2565 C3565 C4565 D9565
    20 3 H3 C2583 C3583 C4583 D9583
      3 H5 C2585 C3585 C4585 D9585
9/16 12   3 H5 C2605 C3605 C4605 D9605
    18 3 H5 C2625 C3625 C4625 D9625
5/8 11   4 H3 C2643 C3643 C4643 D9643
      4 H5 C2645 C3645 C4645 D9645
    18 4 H3 C2663 C3663 C4663 D9663
3/4 10   4 H3 C2703 C3703 C4703 D9703
      4 H5 C2705 C3705 C4705 D9705
    16 4 H3 C2723 C3723 C4723 D9723
7/8 9   4 H4 C2744 C3744 C4744 D9744
    14 4 H6 C2766 C3766 C4766 D9766
1 8   4 H4 C2784 C3784 C4784 D9784
