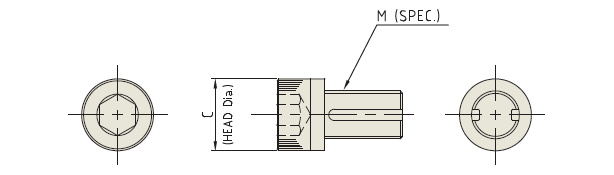

COLLAR BOLT (Coolant groove) - SMA - INCH

SPIGOT Dia. COLLAR BOLT
SPEC. Head Dia. (inch) EDP No.
1/2 UNF1/4-28 x 25.4L 3/8 ZZ251
3/4 UNF3/8-24 x 25.4L 9/16 ZZ252
3/4 UNF3/8-24 x 38.1L 9/16 ZZ254
1 UNF1/2-20 x 31.75L 3/4 ZZ253
1 UNF1/2-20 x 50.8L 3/4 ZZ255
1 1/4 UNF5/8-18 x 38.1L 15/16 ZZ256
1 1/2 UNF3/4-16 x 44.45L 1 1/8 ZZ257
2 UN1-14 x 50.8L 1 1/2 ZZ258

EDP Description
ZZ257-SH 1” (25.4) UNF3/4-16 x 2”
