Milling Home >

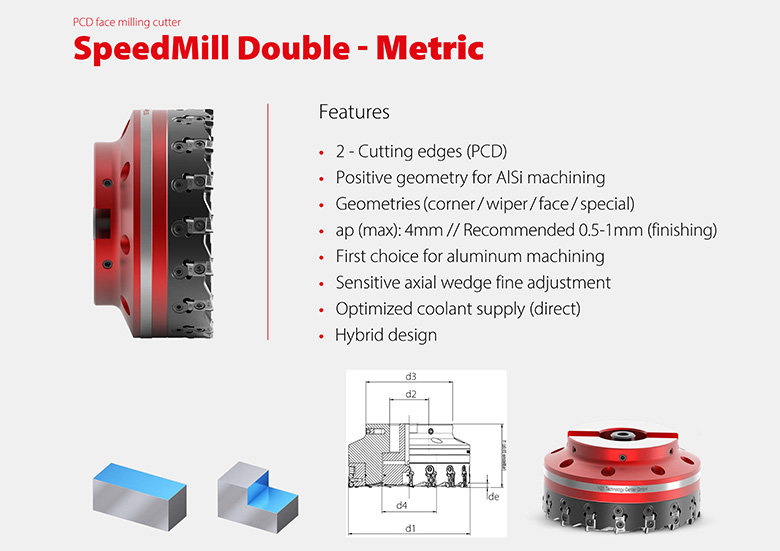

DOUBLE SIDED CARTRIDGE - CUTTER BODIES - METRIC

Narrow pitch

d1 EDP-No. Mainbody d2 d3 l1 max. ap Tooth kg max. RPM
50 YT5008000 Steel 16 38 50 4 8 0.3 30200
63 YT5008001 Steel 22 48 50 4 8 0.5 30200
80 YT5008002 Hybrid 27 58 50 4 10 0.7 27500
100 YT5008003 Hybrid 32 78 60 4 12 1.32 23800
125 YT5008004 Hybrid 40 89 65 4 16 2.15 19100
160 YT5008005 Hybrid 40 89 65 4 20 3.15 14900
200 YT5008006 Hybrid 60 140 80 4 24 6.9 11900
250 YT5008007 Hybrid 60 140 80 4 32 7.4 9550

Wide pitch

d1 EDP-No. Main body d2 d3 l1 max. ap Tooth kg max. RPM
50 YT5008016 Steel 16 38 50 4 5 0.3 30200
63 YT5008017 Steel 22 48 50 4 5 0.5 30200
80 YT5008018 Hybrid 27 58 50 4 6 0.7 27500
100 YT5008019 Hybrid 32 78 60 4 8 1.32 23800
125 YT5008020 Hybrid 40 89 65 4 10 2.15 19100
160 YT5008021 Hybrid 40 89 65 4 12 3.15 14900
200 YT5008022 Hybrid 60 140 80 4 14 6.9 11900
250 YT5008023 Hybrid 60 140 80 4 16 7.4 9550
