Milling	Home >

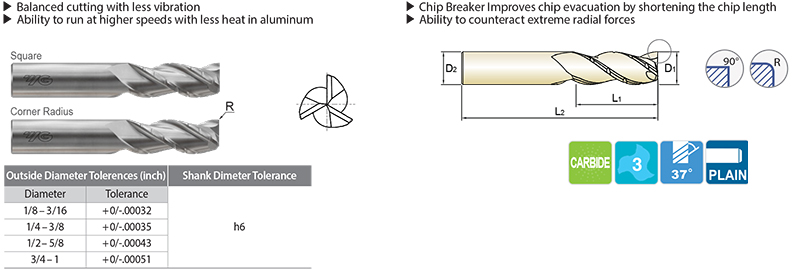

3-FLUTE STANDARD LENGTH - CHIP BREAKER - UNCOATED - E5I36,E5I38

◇ Non-stocked standard item, call for availability.

OD	SD	LOC	OAL	Square End	Corner Radius
(D1)	(D2)	(L1)	(L2)		0.010	0.030	0.060	0.120
				EDP	EDP	EDP	EDP
1/8	1/8	1/4	1_1/2		◇ E5I38008
1/8	1/8	3/8	1_1/2		◇ E5I38901
1/8	1/8	1/2	2_1/2		◇ E5I38902
3/16	3/16	5/16	2		◇ E5I38012
3/16	3/16	9/16	2		◇ E5I38903	◇ E5I38904
1/4	1/4	3/8	2		◇ E5I38016	◇ E5I38905
1/4	1/4	5/8	2_1/2		◇ E5I38906	◇ E5I38907
1/4	1/4	1_1/4	3_1/4		◇ E5I38908	E5I38909	◇ E5I38910
3/8	3/8	1/2	2		E5I38024	E5I38911
3/8	3/8	1	2_1/2		E5I38912	E5I38913	◇ E5I38914
3/8	3/8	1_1/2	3_1/2		E5I38915	E5I38916	◇ E5I38917
3/8	3/8	2	4				E5I38918
1/2	1/2	5/8	2_1/2		E5I38032	E5I38919	E5I38920
1/2	1/2	1_1/4	3	E5I36032	E5I38921	E5I38922	E5I38923
1/2	1/2	1_5/8	4		E5I38924	E5I38925	E5I38926
1/2	1/2	2	4	E5I36901	E5I38927	E5I38928	E5I38929
1/2	1/2	2_1/2	5			E5I38930	E5I38931
1/2	1/2	3	5	E5I36902		E5I38932
5/8	5/8	3/4	3	E5I36040			E5I38040
5/8	5/8	1_5/8	3_1/2				E5I38933
5/8	5/8	2_1/2	5			E5I38934
3/4	3/4	1	3	E5I36048	E5I38048	E5I38935	E5I38936
3/4	3/4	1_5/8	4	E5I36903	E5I38937	E5I38938	E5I38939	E5I38940
3/4	3/4	2_1/4	5			E5I38941	E5I38942	E5I38943
1	1	1_1/4	3		E5I38064
1	1	2	5		E5I38944	E5I38945	E5I38946
1	1	3_1/4	6		E5I38947
