Milling Home >

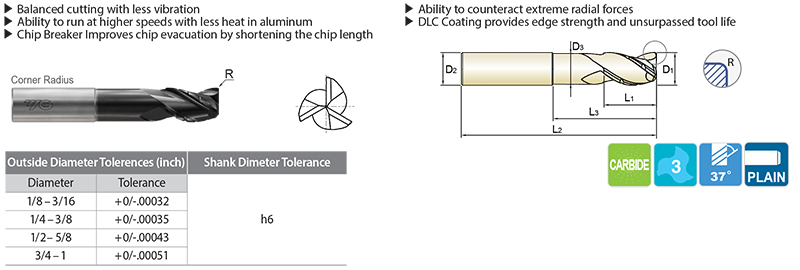

3-FLUTE EXTENDED LENGTH - CHIP BREAKER - COATED - JAI39

  ◇ Non-stocked standard item, call for availability.
OD SD LOC LBS Neck Dia. OAL EDP
Corner Radius
(D1) (D2) (L1) (L3) (D3) (L2) 0.010 0.030 0.060
1/4 1/4 3/8 3/4 0.22 2_1/2 ◇ JAI39016
3/8 3/8 1/2 1_1/8 0.345 3 JAI39024
3/8 3/8 1/2 2_1/8 0.345 4 JAI39901
1/2 1/2 5/8 1_3/8 0.47 3 ◇ JAI39032 JAI39902
1/2 1/2 5/8 2_1/4 0.47 4 JAI39903 JAI39904
1/2 1/2 5/8 3_3/8 0.47 5 JAI39905 JAI39906
1/2 1/2 5/8 4_1/4 0.47 6 JAI39907 JAI39908 JAI39909
3/4 3/4 1 2 0.71 4 JAI39048 JAI39910
3/4 3/4 1 3_3/8 0.71 6 JAI39911 JAI39912
3/4 3/4 1 5 0.71 7 JAI39913 JAI39914
1 1 1_1/4 4_3/8 0.96 7 JAI39064
