2 FLUTE BALL NOSE for RIB PROCESSING X-POWER PRO GM886 - Metric

  2 FLUTE BALL NOSE for RIB PROCESSING X-POWER PRO GM886 - Metric

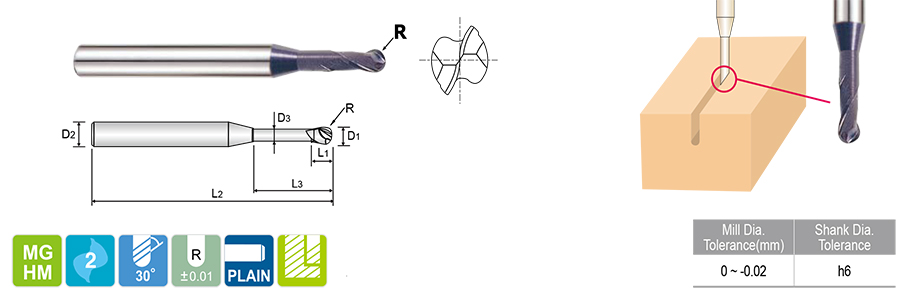

EDP Radius of Ball Nose R (±.001) Mill Diameter (D1) Shank Diameter (D2) Length of Cut (L1) Length Below Shank (L3) Overall Length (L2) Neck Diameter (D3)
GM886005R0.250.540.72450.45
GM886962R0.250.540.74450.45
GM886957R0.30.640.92450.55
GM886915R0.30.640.94450.55
GM886916R0.30.640.96450.55
GM886919R0.40.841.24450.75
GM886008R0.40.841.26450.75
GM886921R0.51.041.54450.95
GM886923R0.51.041.55450.95
GM886010R0.51.041.56450.95
GM886902R0.51.041.58450.95
GM886903R0.51.041.510450.95
GM886904R0.51.041.512450.95
GM886927R0.51.041.516500.95
GM886012R0.61.241.88451.15
GM886930R0.751.542.36451.45
GM886015R0.751.542.38451.45
GM886931R0.751.542.310451.45
GM886906R0.751.542.312451.45
GM886940R1.02.0436451.95
GM886020R1.02.0438451.95
GM886941R1.02.04310451.95
GM886942R1.02.04312501.95
GM886909R1.02.04316501.95
GM886910R1.02.04320551.95
GM886945R1.02.04325601.95
GM886967R1.02.04330701.95
GM886947R1.53.064.510502.85
GM886948R1.53.064.512502.85
GM886030R1.53.064.516552.85
GM886911R1.53.064.520602.85
GM886968R1.53.064.525652.85
GM886040R2.04.06616603.85
GM886912R2.04.06620653.85
GM886913R2.04.06625703.85
GM886971R2.04.06630703.85
GM886972R2.04.06635803.85
GM886050R2.55.067.516604.85
GM886060R3.06.06920805.85
GM886954R3.06.06930905.85
