Milling
HIGH PERFORMANCE CARBIDE STEEL

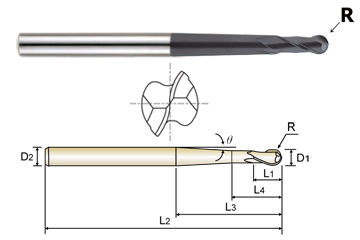

2 FLUTE BALL NOSE WITH PENCIL NECK

 PENCIL NECK / EM979 Series
R +/- .0005 MILL DIAMETER d1 SHANK DIAMETER d2 LENGTH OF CUT l2 Length Below Shank l3 OVERALL LENGTH l4 NECK TAPER ANGLE EDP No.
R3/32 3/16 3/8 9/16 .659 3-11/32 7-3/4 2Deg 93534
R3/32 3/16 3/8 9/16 .666 2-13/16 6 2.3Deg 93535
R1/8 1/4 1/2 3/4 .859 4-7/16 7-3/4 2Deg 93536
R1/8 1/4 1/2 3/4 .856 3-23/32 6 2.3Deg 93537
R5/32 5/16 1/2 3/4 .868 4-29/32 7-3/4 1.2Deg 93538
R5/32 5/16 1/2 3/4 .870 3-15/16 6 1.45Deg 93539
R3/16 3/8 5/8 1-3/16 1.326 4-29/32 7-3/4 2Deg 93540
R3/16 3/8 5/8 1-3/16 1.325 4-3/16 6 2.3Deg 93541
R1/4 1/2 5/8 1-3/16 1.309 4 7-3/4 1.2Deg 93542
R1/4 1/2 5/8 1-3/16 1.329 3-3/8 6 1.45Deg 93543
