Milling

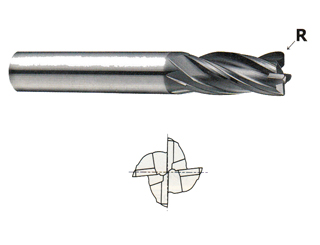

4-FLUTE V7 STEEL, MULTIPLE HELIX, REGULAR LENGTH, CORNER RADIUS, END MILL

  4 FLUTE V7 STEEL REGULAR LENGTH CORNER RADIUS END MILL
EDP No(PLAIN) EDP No(FLAT) C/R O.D S.D L.O.C O.A.L
EMD48008XR.010 1/8 1/8 3/8 1 1/2
EMD48012XR.010 3/16 3/16 7/162
EMD48016XR.015 1/4 1/4 1/2 2 1/2
EMD48020XR.015 5/16 5/16 13/162 1/2
EMD48024EMD49024R.015 3/8 3/8 7/8 2 1/2
EMD48028EMD49028R.015 7/16 7/161 2 3/4
EMD48032EMD49032R.025 1/2 1/2 1 3
EMD48036EMD49036R.025 9/16 9/161 1/8 3 1/2
EMD48040EMD49040R.035 5/8 5/8 1 1/4 3 1/2
EMD48048EMD49048R.035 3/4 3/4 1 1/2 4
EMD48064EMD49064R.0351 1 1 1/2 4
