Tool Selection > Milling > HIGH PERFORMANCE > CARBIDE >
STAINLESS STEEL TITANIUM

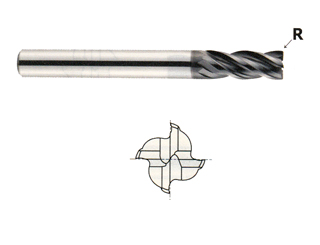

V7 INOX 4FLUTE STUB LENGTH CORNER RADIUS E/M
V7 INOX, 4Flute Stub Length Corner Radius E/M
EDP No. (Plain)
EDP No. (Flat)
C/R
O.D
S.D
L.O.C
O.A.L
EMC76008
R.010~.015
1/8
1/8
1/8
1 1/2
EMC76010
R.010~.015
5/32
3/16
3/16
2
EMC76012
R.010~.015
3/16
3/16
3/16
2
EMC76014
R.015~.020
7/32
1/4
1/4
2
EMC76016
R.015~.020
1/4
1/4
1/4
2
EMC76020
R.015~.020
5/16
5/16
5/16
2
EMD61024
R.015~.020
3/8
3/8
3/8
2
EMD61028
R.015~.020
7/16
7/16
7/16
2 1/2
EMD61032
R.025~.030
1/2
1/2
1/2
2 1/2
EMD61040
R.035~.040
5/8
5/8
5/8
3
EMD61048
R.035~.040
3/4
3/4
3/4
3
EMD61064
R.035~.040
1
1
1
4
