Milling
HIGH PERFORMANCE POWDERED METAL STAINLESS STEEL TITANIUM
TANK POWER, ASP60 2 FLUTE BALL NOSE SINGLE END MILLS

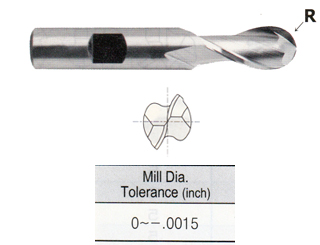

 ASP60 2 FLUTE BALL NOSE SINGLE END MILLS
MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH EDP No. EDP No.
1/8 3/8 3/8 2-5/16 E9992008 E9992008TF
3/16 3/8 7/16 2-5/16 E9992012 E9992012TF
1/4 3/8 1/2 2-5/16 E9992016 E9992016TF
5/16 3/8 9/16 2-5/16 E9992020 E9992020TF
3/8 3/8 9/16 2-5/16 E9992024 E9992024TF
1/2 1/2 1 3 E9992032 E9992032TF
5/8 5/8 1-5/16 3-7/16 E9992040 E9992040TF
3/4 3/4 1-5/16 3-7/16 E9992048 E9992048TF
7/8 7/8 1-1/2 3-3/4 E9992056 E9992056TF
1 1 1-5/8 4-1/8 E9992064 E9992064TF
