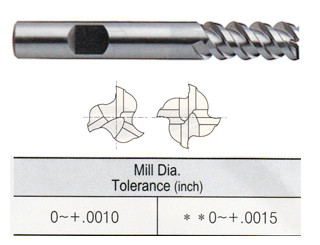

TANK POWER, ASP60 3 and 4 FLUTE 60 DEGREE HELIX CENTER CUTTING END MILL

 ASP60 3 AND 4 FLUTE 60 HELIX CENTER CUTTING END MILL
MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH NO. OF FLUTES EDP No. EDP No.
1/4 3/8 5/8 2-7/16 3 E9988016 E9988016TF
5/16 3/8 3/4 2-1/2 3 E9988020 E9988020TF
3/8 3/8 3/4 2-1/2 3 E9988024 E9988024TF
7/16 3/8 1 2-11/16 3 E9988028 E9988028TF
1/2 1/2 1-1/4 3-1/4 3 E9988032 E9988032TF
5/8 5/8 1-5/8 3-3/4 3 E9988040 E9988040TF
3/4 3/4 1-5/8 3-7/8 3 E9988048 E9988048TF
7/8 3/4 1-7/8 4-1/8 4 E9988901 E9988901TF
7/8 7/8 1-7/8 4-1/8 4 E9988056 E9988056TF
1 1 2 4-1/2 4 E9988064 E9988064TF
