Milling
HIGH PERFORMANCE POWDERED METAL STAINLESS STEEL TITANIUM
TANK POWER MULTI FLUTE LONG LENGTH COARSE PITCH ROUGHING

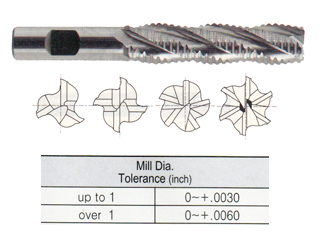

  E9A87 SERIES (TANK POWER, COARSE PITCH ROUGHING E/M with LONG LENGTH)
MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH NO. OF FLUTE EDP No. EDP No.
5/16 3/8 1-3/8 3-3/16 3 E9A87020 E9A87020TF
3/8 3/8 1-1/2 3-1/4 4 E9A87024 E9A87024TF
3/8 3/8 1-1/2 4" 4 E9A87924 E9A87924TF
1/2 1/2 2" 4 4 E9A87032 E9A87032TF
5/8 5/8 2-1/2 4-5/8 4 E9A87040 E9A87040TF
3/4 5/8 3" 5-1/8 4 E9A87048 E9A87048TF
3/4 3/4 3" 5-1/4 4 E9A87948 E9A87948TF
7/8 3/4 3-1/2 5-3/4 5 E9A87056 E9A87056TF
7/8 7/8 3-1/2 5-3/4 5 E9A87956 E9A87956TF
1" 1" 4" 6-1/2 5 E9A87064 E9A87064TF
1-1/4 3/4 4" 6-1/4 6 E9A87116 E9A87116TF
1-1/4 1-1/4 4" 6-1/2 6 E9A87917 E9A87917TF
