Milling
HIGH PERFORMANCE CARBIDEL GRAPHITE

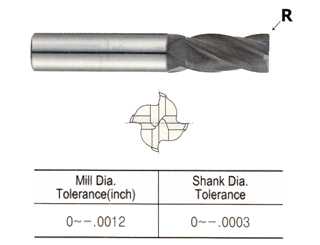

4 FLUTE 30 DEGREE HELIX WITH RADIUS

  4 FLUTE 30 DEGREE HELIX WITH RADIUS
Corner Mill Shank Length Length Overall Neck EDP NO
Radius Diameter Diameter of Cut Below Shank Length Diameter
R.0101/161/83/16-1-1/2-EIB05004
R.0151/161/83/16-1-1/2-EIB05901
R.0103/321/83/8-1-1/2-EIB05006
R.0151/81/81/2-1-1/2-EIB05008
R.0201/81/81/2-1-1/2-EIB05902
R.0203/163/165/8-2-EIB05012
R.0203/163/163/161-1/240.169EIB05911
R.0303/163/165/8-2-EIB05903
R.0201/41/43/4-2-1/2-EIB05016
R.0201/41/41/4240.230EIB05913
R.0201/41/41/4260.230EIB05912
R.0301/41/43/4-2-1/2-EIB05904
R.0203/83/87/8-2-1/2-EIB05024
R.0203/83/83/8240.355EIB05908
R.0203/83/83/8-4-EIB05907
R.0303/83/87/8-2-1/2-EIB05905
R.0301/21/21-3-EIB05032
R.0601/21/21-3-EIB05906
R.0301/21/21-1/2-4-EIB05909
R.0301/21/23-6-EIB05910
