Milling

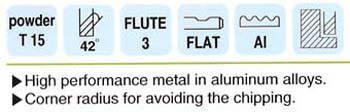

HIGH PERFORMANCE POWDERED METAL ALUMINUM

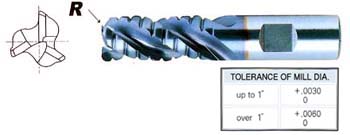

T15 3 FLUTE 42 DEGREE HELIX, LONG LENGTH, ROUGHING WITH CORNER RADIUS

 EK192 Series
SIZE Uncoated TiCN Coated
RADIUS MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH EDP No. EDP No.
.060 3/4 3/4 3 3-7/8 67904 67904PC
.090 3/4 3/4 3 3-7/8 67905 67905PC
.120 3/4 3/4 3 3-7/8 67906 67906PC
.060 1 1 4 4-1/2 67907 67907PC
.090 1 1 4 4-1/2 67908 67908PC
.120 1 1 4 4-1/2 67909 67909PC
.060 1-1/4 1-1/4 4 4-1/2 67910 67910PC
.090 1-1/4 1-1/4 4 4-1/2 67911 67911PC
.120 1-1/4 1-1/4 4 4-1/2 67912 67912PC
.060 1-1/4 1-1/4 6 8-1/2 67913 67913PC
.090 1-1/4 1-1/4 6 8-1/2 67914 67914PC
.120 1-1/4 1-1/4 6 8-1/2 67915 67915PC
