Drilling Home > Drilling > GOLD-P DRILLS

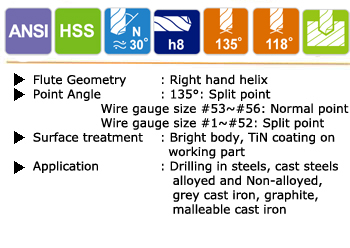

HSS STRAIGHT SHANK JOBBER LENGTH - WIRE GUAGE
 Wire Guage Size / Gold-P Coated (ANSI)

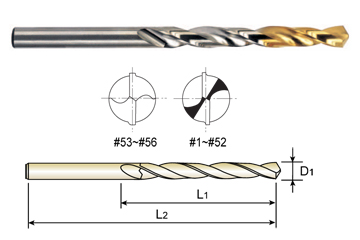

SIZE OD h8 LOC OAL EDP NO.
1 .2280 2 5/8 3 7/8 D1GP138256
2 .2210 2 5/8 3 7/8 D1GP138255
3 .2130 2 1/2 3 3/4 D1GP138254
4 .2090 2 1/2 3 3/4 D1GP138253
5 .2055 2 1/2 3 3/4 D1GP138252
6 .2040 2 1/2 3 3/4 D1GP138251
7 .2010 2 7/16 3 5/8 D1GP138250
8 .1990 2 7/16 3 5/8 D1GP138249
9 .1960 2 7/16 3 5/8 D1GP138248
10 .1935 2 7/16 3 5/8 D1GP138247
11 .1910 2 5/16 3 1/2 D1GP138246
12 .1890 2 5/16 3 1/2 D1GP138245
13 .1850 2 5/16 3 1/2 D1GP138244
14 .1820 2 3/16 3 3/8 D1GP138243
15 .1800 2 3/16 3 3/8 D1GP138242
16 .1770 2 3/16 3 3/8 D1GP138241
17 .1730 2 3/16 3 3/8 D1GP138240
18 .1695 2 1/8 3 1/4 D1GP138239
19 .1660 2 1/8 3 1/4 D1GP138238
20 .1610 2 1/8 3 1/4 D1GP138237
21 .1590 2 1/8 3 1/4 D1GP138236
22 .1570 2 3 1/8 D1GP138235
23 .1540 2 3 1/8 D1GP138234
24 .1520 2 3 1/8 D1GP138233
25 .1495 1 7/8 3 D1GP138232
26 .1470 1 7/8 3 D1GP138231
27 .1440 1 7/8 3 D1GP138230
28 .1405 1 3/4 2 7/8 D1GP138229
29 .1360 1 3/4 2 7/8 D1GP138228
30 .1285 1 5/8 2 3/4 D1GP138227
31 .1200 1 5/8 2 3/4 D1GP138226
32 .1160 1 5/8 2 3/4 D1GP138225
33 .1130 1 1/2 2 5/8 D1GP138224
34 .1110 1 1/2 2 5/8 D1GP138223
35 .1100 1 1/2 2 5/8 D1GP138222
36 .1065 1 7/16 2 1/2 D1GP138221
37 .1040 1 7/16 2 1/2 D1GP138220
38 .1015 1 7/16 2 1/2 D1GP138219
39 .0995 1 3/8 2 3/8 D1GP138218
40 .0980 1 3/8 2 3/8 D1GP138217
41 .0960 1 3/8 2 3/8 D1GP138216
42 .0935 1 1/4 2 1/4 D1GP138215
43 .0890 1 1/4 2 1/4 D1GP138214
44 .0860 1 1/8 2 1/8 D1GP138213
45 .0820 1 1/8 2 1/8 D1GP138212
46 .0810 1 1/8 2 1/8 D1GP138211
47 .0785 1 2 D1GP138210
48 .0760 1 2 D1GP138209
49 .0730 1 2 D1GP138208
50 .0700 1 2 D1GP138207
51 .0670 1 2 D1GP138206
52 .0635 7/8 1 7/8 D1GP138205
53 .0595 7/8 1 7/8 D1GP134204
54 .0550 7/8 1 7/8 D1GP134203
55 .0520 7/8 1 7/8 D1GP134202
56 .0465 3/4 1 3/4 D1GP134201
