Drilling
  SCREW MACHINE DRILL

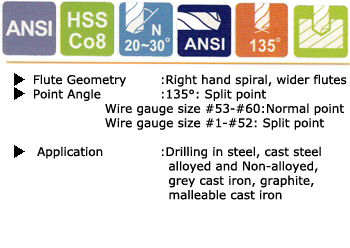

HSS-Co8% SCREW MACHINE DRILL - WIRE GAUGE

 Wire Gauge Size / HSS-Co8% Screw Machine Drill

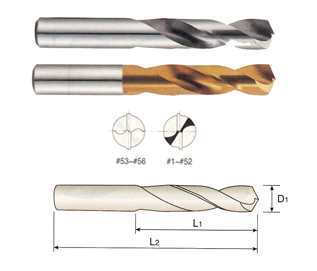

SIZE OD h8 LOC OAL UN-COATING TIN-COATING
EDP NO. EDP NO.
1 .2280 1 - 5/16 2 - 7/16 D2148101 D4148101
2 .2210 1 - 5/16 2 - 7/16 D2148102 D4148102
3 .2130 1 - 1/4 2 - 3/8 D2148103 D4148103
4 .2090 1 - 1/4 2 - 3/8 D2148104 D4148104
5 .2055 1 - 1/4 2 - 3/8 D2148105 D4148105
6 .2040 1 - 1/4 2 - 3/8 D2148106 D4148106
7 .2010 1 - 3/16 2 - 1/4 D2148107 D4148107
8 .1990 1 - 3/16 2 - 1/4 D2148108 D4148108
9 .1960 1 - 3/16 2 - 1/4 D2148109 D4148109
10 .1935 1 - 3/16 2 - 1/4 D2148110 D4148110
11 .1910 1 - 3/16 2 - 1/4 D2148111 D4148111
12 .1890 1 - 3/16 2 - 1/4 D2148112 D4148112
13 .1850 1 - 1/8 2 - 3/16 D2148113 D4148113
14 .1820 1 - 1/8 2 - 3/16 D2148114 D4148114
15 .1800 1 - 1/8 2 - 3/16 D2148115 D4148115
16 .1770 1 - 1/8 2 - 3/16 D2148116 D4148116
17 .1730 1 - 1/8 2 - 3/16 D2148117 D4148117
18 .1695 1 - 1/16 2 - 1/8 D2148118 D4148118
19 .1660 1 - 1/16 2 - 1/8 D2148119 D4148119
20 .1610 1 - 1/16 2 - 1/8 D2148120 D4148120
21 .1590 1 - 1/16 2 - 1/8 D2148121 D4148121
22 .1570 1 - 1/16 2 - 1/8 D2148122 D4148122
23 .1540 1 2 - 1/16 D2148123 D4148123
24 .1520 1 2 - 1/16 D2148124 D4148124
25 .1495 1 2 - 1/16 D2148125 D4148125
26 .1470 1 2 - 1/16 D2148126 D4148126
27 .1440 1 2 - 1/16 D2148127 D4148127
28 .1405 15/16 1 - 15/16 D2148128 D4148128
29 .1360 15/16 1 - 15/16 D2148129 D4148129
30 .1285 15/16 1 - 15/16 D2148130 D4148130
31 .1200 7/8 1 - 7/8 D2148131 D4148131
32 .1160 7/8 1 - 7/8 D2148132 D4148132
33 .1130 7/8 1 - 7/8 D2148133 D4148133
34 .1110 7/8 1 - 7/8 D2148134 D4148134
35 .1100 7/8 1 - 7/8 D2148135 D4148135
36 .1065 13/16 1 - 13/16 D2148136 D4148136
37 .1040 13/16 1 - 13/16 D2148137 D4148137
38 .1015 13/16 1 - 13/16 D2148138 D4148138
39 .0995 13/16 1 - 13/16 D2148139 D4148139
40 .0980 13/16 1 - 13/16 D2148140 D4148140
41 .0960 13/16 1 - 13/16 D2148141 D4148141
42 .0935 3/4 1 - 3/4 D2148142 D4148142
43 .0890 3/4 1 - 3/4 D2148143 D4148143
44 .0860 3/4 1 - 3/4 D2148144 D4148144
45 .0820 3/4 1 - 3/4 D2148145 D4148145
46 .0810 3/4 1 - 3/4 D2148146 D4148146
47 .0785 11/16 1 - 11/16 D2148147 D4148147
48 .0760 11/16 1 - 11/16 D2148148 D4148148
49 .0730 11/16 1 - 11/16 D2148149 D4148149
50 .0700 11/16 1 - 11/16 D2148150 D4148150
51 .0670 11/16 1 - 11/16 D2148151 D4148151
52 .0635 11/16 1 - 11/16 D2148152 D4148152
53 .0595 5/8 1 - 5/8 D2148153 D4148153
54 .0550 5/8 1 - 5/8 D2148154 D4148154
55 .0520 5/8 1 - 5/8 D2148155 D4148155
56 .0465 1/2 1 - 3/8 D2148156 D4148156
57 .0430 1/2 1 - 3/8 D2148157 D4148157
58 .0420 1/2 1 - 3/8 D2148158 D4148158
59 .0410 1/2 1 - 3/8 D2148159 D4148159
60 .0400 1/2 1 - 3/8 D2148160 D4148160
