Drilling
  SCREW MACHINE DRILL

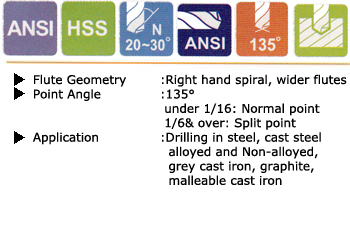

HSS SCREW MACHINE DRILL - FRACTIONAL AND LETTERS

  HSS Screw Machine Drill-Fractional And Letters

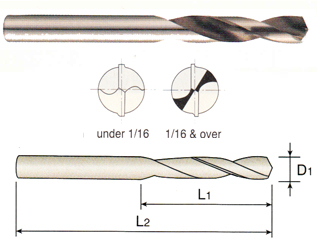

Diameter Flute Overall EDP NO
Fractional Decimal Length Length
3/640.04691/21-3/8D1118003
1/160.06255/81-5/8D1118004
5/640.078111/161-11/16D1118005
3/320.09383/41-3/4D1118006
7/640.109413/161-13/16D1118007
1/80.12507/81-7/8D1118008
9/640.140615/161-15/16D1118009
5/320.156312-1/16D1118010
11/640.17191-1/162-1/8D1118011
3/160.18751-1/82-3/16D1118012
13/640.20311-3/162-1/4D1118013
7/320.21881-1/42-3/8D1118014
15/640.23441-5/162-7/16D1118015
1/40.25001-3/82-1/2D1118016
17/640.26561-7/162-5/8D1118017
9/320.28131-1/22-11/16D1118018
19/640.29691-9/162-3/4D1118019
5/160.31251-5/82-13/16D1118020
21/640.32811-11/162-15/16D1118021
11/320.34381-11/163D1118022
23/640.35941-3/43-1/16D1118023
3/80.37501-13/163-1/8D1118024
25/640.39061-7/83-1/4D1118025
13/320.40631-15/163-5/16D1118026
27/640.421923-3/8D1118027
7/160.43752-1/163-7/16D1118028
29/640.45312-1/83-9/16D1118029
15/320.46882-1/83-5/8D1118030
31/640.48442-3/163-11/16D1118031
1/20.50002-1/43-3/4D1118032
A0.23401-5/162-7/16D1115201
B0.23801-3/82-1/2D1115202
C0.24201-3/82-1/2D1115203
D0.24601-3/82-1/2D1115204
E0.25001-3/82-1/2D1115205
F0.25701-7/162-5/8D1115206
G0.26101-7/162-5/8D1115207
H0.26601-1/22-11/16D1115208
I0.27201-1/22-11/16D1115209
J0.27701-1/22-11/16D1115210
K0.28101-1/22-11/16D1115211
L0.29001-9/162-3/4D1115212
M0.29501-9/162-3/4D1115213
N0.30201-5/82-13/16D1115214
O0.31601-11/162-15/16D1115215
P0.32301-11/162-15/16D1115216
Q0.33201-11/163D1115217
R0.33901-11/163D1115218
S0.34801-3/43-1/16D1115219
T0.35801-3/43-1/16D1115220
U0.36801-13/163-1/8D1115221
V0.37701-7/83-1/4D1115222
W0.38601-7/83-1/4D1115223
X0.39701-15/163-5/16D1115224
Y0.40401-15/163-5/16D1115225
Z0.413023-3/8D1115226
