Tapping	Home >

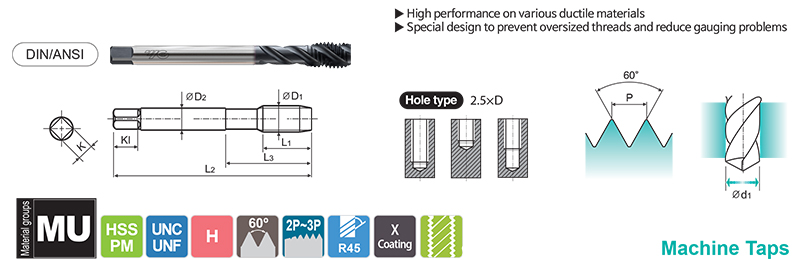

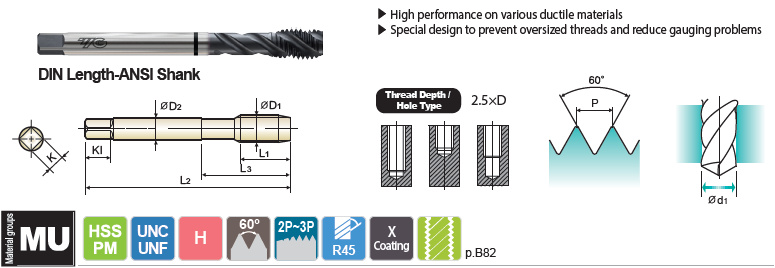

Spiral Flute Modified Bottoming High Performance Taps - TRF14 series

Size		TPI	EDP No.	Limits	Thread Length	Overall Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute	Tapping Drill Diameter
ØD1		TPI	EDP No.	Limits	L1	L2	L3	ØD2	K	KI	Z	Ød1
#4	-	40	TRF14162GS	H2	0.2	2.21	0.708	0.141	0.11	0.19	2	-	2.3
#4	-	48	TRF14182GS	H2	0.2	2.21	0.708	0.141	0.11	0.19	2	3/32	-
#5	-	40	TRF14202GS	H2	0.2	2.21	0.708	0.141	0.11	0.19	3	-	2.6
#6	-	32	TRF14242GS	H2	0.248	2.21	0.783	0.141	0.11	0.19	3	-	2.8
#6	-	32	TRF14243GS	H3	0.248	2.21	0.783	0.141	0.11	0.19	3	-	2.8
#6	-	40	TRF14262GS	H2	0.248	2.21	0.783	0.141	0.11	0.19	3	-	2.9
#8	-	32	TRF14282GS	H2	0.251	2.48	0.826	0.168	0.131	0.25	3	-	3.4
#8	-	32	TRF14283GS	H3	0.251	2.48	0.826	0.168	0.131	0.25	3	-	3.4
#8	-	36	TRF14302GS	H2	0.251	2.48	0.826	0.168	0.131	0.25	3	-	3.5
#10	-	24	TRF14323GS	H3	0.326	2.75	0.976	0.194	0.152	0.25	3	-	3.9
#10	-	32	TRF14342GS	H2	0.326	2.75	0.976	0.194	0.152	0.25	3	-	4.1
#10	-	32	TRF14343GS	H3	0.326	2.75	0.976	0.194	0.152	0.25	3	-	4.1
#12	-	24	TRF14363GS	H3	0.33	3.15	1.177	0.22	0.165	0.28	3	-	4.5
#12	-	28	TRF14383GS	H3	0.33	3.15	1.177	0.22	0.165	0.28	3	-	4.7
1/4	-	20	TRF14403GS	H3	0.397	3.15	1.177	0.255	0.191	0.31	3	-	5.2
1/4	-	20	TRF14405GS	H5	0.397	3.15	1.177	0.255	0.191	0.31	3	-	5.2
1/4	-	28	TRF14423GS	H3	0.397	3.15	1.177	0.255	0.191	0.31	3	-	5.5
1/4	-	28	TRF14424GS	H4	0.397	3.15	1.177	0.255	0.191	0.31	3	-	5.5
5/16	-	18	TRF14443GS	H3	0.556	3.54	1.377	0.318	0.238	0.38	3	-	6.7
5/16	-	18	TRF14445GS	H5	0.556	3.54	1.377	0.318	0.238	0.38	3	-	6.7
5/16	-	24	TRF14463GS	H3	0.417	3.54	1.377	0.318	0.238	0.38	3	-	7
5/16	-	24	TRF14464GS	H4	0.417	3.54	1.377	0.318	0.238	0.38	3	-	7
3/8	-	16	TRF14483GS	H3	0.625	3.94	1.535	0.381	0.286	0.44	3	-	8.1
3/8	-	16	TRF14485GS	H5	0.625	3.94	1.535	0.381	0.286	0.44	3	-	8.1
3/8	-	24	TRF14503GS	H3	0.417	3.94	1.377	0.381	0.286	0.44	3	-	8.6
3/8	-	24	TRF14504GS	H4	0.417	3.94	1.377	0.381	0.286	0.44	3	-	8.6
7/16	-	14	TRF14523GS	H3	0.714	3.94	1.712	0.323	0.242	0.41	3	-	9.5
7/16	-	14	TRF14525GS	H5	0.714	3.94	1.712	0.323	0.242	0.41	3	-	9.5
7/16	-	20	TRF14543GS	H3	0.5	3.94	1.712	0.323	0.242	0.41	3	-	10
7/16	-	20	TRF14545GS	H5	0.5	3.94	1.712	0.323	0.242	0.41	3	-	10
1/2	-	13	TRF14563GS	H3	0.769	4.33	1.933	0.367	0.275	0.44	3	-	11
1/2	-	13	TRF14565GS	H5	0.769	4.33	1.933	0.367	0.275	0.44	3	-	11
1/2	-	20	TRF14583GS	H3	0.5	3.94	1.933	0.367	0.275	0.44	3	-	11.6
1/2	-	20	TRF14585GS	H5	0.5	3.94	1.933	0.367	0.275	0.44	3	-	11.6
9/16	-	12	TRF14603GS	H3	0.833	4.33	1.972	0.429	0.322	0.5	3	-	12.5
9/16	-	12	TRF14605GS	H5	0.833	4.33	1.972	0.429	0.322	0.5	3	-	12.5
9/16	-	18	TRF14623GS	H3	0.556	3.94	1.972	0.429	0.322	0.5	3	-	13
9/16	-	18	TRF14625GS	H5	0.556	3.94	1.972	0.429	0.322	0.5	3	-	13
5/8	-	11	TRF14643GS	H3	0.909	4.33	2.125	0.48	0.36	0.56	3	-	13.9
5/8	-	11	TRF14645GS	H5	0.909	4.33	2.125	0.48	0.36	0.56	3	-	13.9
5/8	-	18	TRF14663GS	H3	0.556	3.94	2.125	0.48	0.36	0.56	3	-	14.6
5/8	-	18	TRF14665GS	H5	0.556	3.94	2.125	0.48	0.36	0.56	3	-	14.6
3/4	-	10	TRF14703GS	H3	1	4.92	2.433	0.59	0.442	0.69	4	-	16.9
3/4	-	10	TRF14705GS	H5	1	4.92	2.433	0.59	0.442	0.69	4	-	16.9
3/4	-	16	TRF14723GS	H3	0.625	4.33	2.433	0.59	0.442	0.69	4	-	17.7
3/4	-	16	TRF14725GS	H5	0.625	4.33	2.433	0.59	0.442	0.69	4	-	17.7
7/8	-	9	TRF14744GS	H4	1.111	5.51	2.653	697	0.523	0.75	4	-	19.8
7/8	-	9	TRF14746GS	H6	1.111	5.51	2.653	697	0.523	0.75	4	-	19.8
7/8	-	14	TRF14764GS	H4	0.714	4.92	2.653	697	0.523	0.75	4	-	20.5
7/8	-	14	TRF14766GS	H6	0.714	4.92	2.653	697	0.523	0.75	4	-	20.5
1"	-	8	TRF14786GS	H6	1.251	6.3	3.012	0.8	0.6	0.81	4	-	22.7
1"	-	8	TRF14784GS	H4	1.251	6.3	3.012	0.8	0.6	0.81	4	-	22.7
1"	-	12	TRF14804GS	H4	0.833	5.51	3.012	0.8	0.6	0.81	4	-	23.5
1"	-	12	TRF14806GS	H6	0.833	5.51	3.012	0.8	0.6	0.81	4	-	23.5
1"	-	14	TRF14816GS	H6	0.714	5.51	3.012	0.8	0.6	0.81	4	-	23.7
1-1/8	-	7	TRF14829GS	H9	1.429	7.08	3.818	0.896	0.672	0.88	4	-	25.5
1-1/8	-	8	TRF14839GS	H9	1.25	7.08	3.818	0.896	0.672	0.88	4	-	25.7
1-1/8	-	12	TRF14848GS	H8	0.833	5.9	3.07	0.896	0.672	0.88	4	1-3/64	-
1-1/4	-	7	TRF14860GS	H10	1.429	7.08	3.937	1.021	0.766	1	4	-	28.5
1-1/4	-	8	TRF14879GS	H9	1.25	7.08	3.937	1.021	0.766	1	4	-	29
1-1/4	-	12	TRF14888GS	H8	0.833	5.9	3.07	1.021	0.766	1	4	1-11/64	-
1-3/8	-	6	TRF14900GS	H10	1.667	7.87	4.527	1.108	0.831	1.06	4	-	31
1-3/8	-	8	TRF14919GS	H9	1.25	7.87	4.527	1.108	0.831	1.06	4	-	32
1-3/8	-	12	TRF14928GS	H8	0.833	6.69	3.582	1.108	0.831	1.06	4	-	33
1-1/2	-	6	TRF14940GS	H10	1.667	7.87	4.527	1.233	0.925	1.13	4	1-11/32	-
1-1/2	-	8	TRF14959GS	H9	1.25	7.87	4.527	1.233	0.925	1.13	4	-	35
1-1/2	-	12	TRF14968GS	H8	0.833	6.69	3.582	1.233	0.925	1.13	4	-	36
