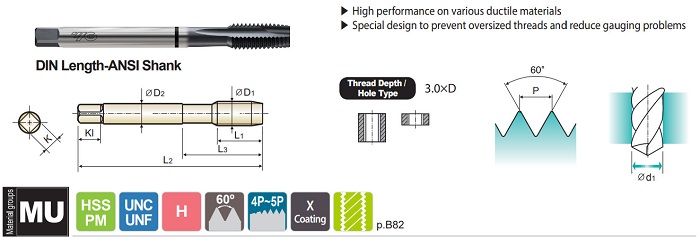

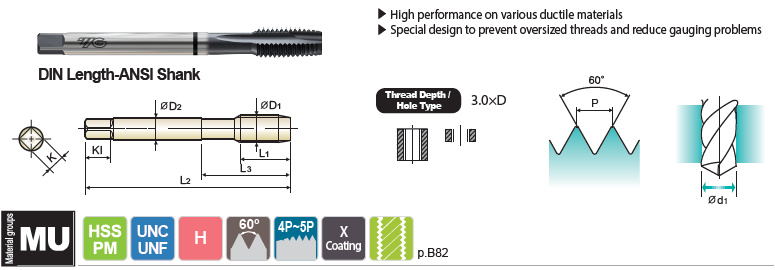

Spiral Point High Performance Taps - TRK14 series
|
|
|
|
|
|
|
|
| Size | TPI |
EDP No. |
Limits | Thread Length | Overall Length | Neck Length | Shank Diameter | Square Size | Square Length | No. of Flute | Tapping Drill Diameter |
| ØD1 |
L1 | L2 | L3 | ØD2 | K | KI | Z | Ød1 |
| #2 | - | 56 |
TRK14082GS
| H2 | 0.437 | 1.77 | 0.476 | 0.141 | 0.11 | 0.19 | 2 | - | 1.8 |
| #2 | - | 64 |
TRK14102GS
| H2 | 0.437 | 1.77 | 0.476 | 0.141 | 0.11 | 0.19 | 2 | - | 1.8 |
| #3 | - | 48 |
TRK14122GS
| H2 | 0.5 | 1.97 | 0.539 | 0.141 | 0.11 | 0.19 | 2 | - | 2 |
| #3 | - | 56 |
TRK14142GS
| H2 | 0.5 | 1.97 | 0.539 | 0.141 | 0.11 | 0.19 | 2 | - | 2.1 |
| #4 | - | 40 |
TRK14162GS
| H2 | 0.335 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 2 | - | 2.3 |
| #4 | - | 48 |
TRK14182GS
| H2 | 0.335 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 2 | 3/32 | - |
| #5 | - | 40 |
TRK14202GS
| H2 | 0.374 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 3 | - | 2.6 |
| #5 | - | 44 |
TRK14222GS
| H2 | 0.374 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 3 | - | 2.6 |
| #6 | - | 32 |
TRK14242GS
| H2 | 0.413 | 2.21 | 0.787 | 0.141 | 0.11 | 0.19 | 3 | - | 2.8 |
| #6 | - | 32 |
TRK14243GS
| H3 | 0.413 | 2.21 | 0.787 | 0.141 | 0.11 | 0.19 | 3 | - | 2.8 |
| #6 | - | 40 |
TRK14262GS
| H2 | 0.413 | 2.21 | 0.787 | 0.141 | 0.11 | 0.19 | 3 | - | 2.9 |
| #8 | - | 32 |
TRK14282GS
| H2 | 0.453 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.4 |
| #8 | - | 32 |
TRK14283GS
| H3 | 0.453 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.4 |
| #8 | - | 36 |
TRK14302GS
| H2 | 0.453 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.5 |
| #10 | - | 24 |
TRK14323GS
| H3 | 0.531 | 2.75 | 0.984 | 0.194 | 0.152 | 0.25 | 3 | - | 3.9 |
| #10 | - | 32 |
TRK14342GS
| H2 | 0.531 | 2.75 | 0.984 | 0.194 | 0.152 | 0.25 | 3 | - | 4.1 |
| #10 | - | 32 |
TRK14343GS
| H3 | 0.531 | 2.75 | 0.984 | 0.194 | 0.152 | 0.25 | 3 | - | 4.1 |
| #12 | - | 24 |
TRK14363GS
| H3 | 0.571 | 3.15 | 1.181 | 0.22 | 0.165 | 0.28 | 3 | - | 4.5 |
| #12 | - | 28 |
TRK14383GS
| H3 | 0.571 | 3.15 | 1.181 | 0.22 | 0.165 | 0.28 | 3 | - | 4.7 |
| 1/4 | - | 20 |
TRK14403GS
| H3 | 0.591 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.2 |
| 1/4 | - | 20 |
TRK14405GS
| H5 | 0.591 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.2 |
| 1/4 | - | 28 |
TRK14423GS
| H3 | 0.591 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.5 |
| 1/4 | - | 28 |
TRK14424GS
| H4 | 0.591 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.5 |
| 5/16 | - | 18 |
TRK14443GS
| H3 | 0.669 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 6.7 |
| 5/16 | - | 18 |
TRK14445GS
| H5 | 0.669 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 6.7 |
| 5/16 | - | 24 |
TRK14463GS
| H3 | 0.669 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 7 |
| 5/16 | - | 24 |
TRK14464GS
| H4 | 0.669 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 7 |
| 3/8 | - | 16 |
TRK14483GS
| H3 | 0.748 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 3 | - | 8.1 |
| 3/8 | - | 16 |
TRK14485GS
| H5 | 0.748 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 3 | - | 8.1 |
| 3/8 | - | 24 |
TRK14503GS
| H3 | 0.748 | 3.94 | 1.377 | 0.381 | 0.286 | 0.44 | 3 | - | 8.6 |
| 3/8 | - | 24 |
TRK14504GS
| H4 | 0.748 | 3.94 | 1.377 | 0.381 | 0.286 | 0.44 | 3 | - | 8.6 |
| 7/16 | - | 14 |
TRK14523GS
| H3 | 0.866 | 3.94 | 1.437 | 0.323 | 0.242 | 0.41 | 3 | - | 9.5 |
| 7/16 | - | 14 |
TRK14525GS
| H5 | 0.866 | 3.94 | 1.437 | 0.323 | 0.242 | 0.41 | 3 | - | 9.5 |
| 7/16 | - | 20 |
TRK14543GS
| H3 | 0.866 | 3.94 | 1.437 | 0.323 | 0.242 | 0.41 | 3 | - | 10 |
| 7/16 | - | 20 |
TRK14545GS
| H5 | 0.866 | 3.94 | 1.437 | 0.323 | 0.242 | 0.41 | 3 | - | 10 |
| 1/2 | - | 13 |
TRK14563GS
| H3 | 0.984 | 4.33 | 1.657 | 0.367 | 0.275 | 0.44 | 3 | - | 11 |
| 1/2 | - | 13 |
TRK14565GS
| H5 | 0.984 | 4.33 | 1.657 | 0.367 | 0.275 | 0.44 | 3 | - | 11 |
| 1/2 | - | 20 |
TRK14583GS
| H3 | 0.984 | 3.94 | 1.657 | 0.367 | 0.275 | 0.44 | 3 | - | 11.6 |
| 1/2 | - | 20 |
TRK14585GS
| H5 | 0.984 | 3.94 | 1.657 | 0.367 | 0.275 | 0.44 | 3 | - | 11.6 |
| 9/16 | - | 12 |
TRK14603GS
| H3 | 0.984 | 4.33 | 1.657 | 0.429 | 0.322 | 0.5 | 3 | - | 12.5 |
| 9/16 | - | 12 |
TRK14605GS
| H5 | 0.984 | 4.33 | 1.657 | 0.429 | 0.322 | 0.5 | 3 | - | 12.5 |
| 9/16 | - | 18 |
TRK14623GS
| H3 | 0.984 | 3.94 | 1.657 | 0.429 | 0.322 | 0.5 | 3 | - | 13 |
| 9/16 | - | 18 |
TRK14625GS
| H5 | 0.984 | 3.94 | 1.657 | 0.429 | 0.322 | 0.5 | 3 | - | 13 |
| 5/8 | - | 11 |
TRK14643GS
| H3 | 1.083 | 4.33 | 1.811 | 0.48 | 0.36 | 0.56 | 3 | - | 13.9 |
| 5/8 | - | 11 |
TRK14645GS
| H5 | 1.083 | 4.33 | 1.811 | 0.48 | 0.36 | 0.56 | 3 | - | 13.9 |
| 5/8 | - | 18 |
TRK14663GS
| H3 | 1.083 | 3.94 | 1.811 | 0.48 | 0.36 | 0.56 | 3 | - | 14.6 |
| 5/8 | - | 18 |
TRK14665GS
| H5 | 1.083 | 3.94 | 1.811 | 0.48 | 0.36 | 0.56 | 3 | - | 14.6 |
| 3/4 | - | 10 |
TRK14703GS
| H3 | 1.201 | 4.92 | 2 | 0.59 | 0.442 | 0.69 | 3 | - | 16.9 |
| 3/4 | - | 10 |
TRK14705GS
| H5 | 1.201 | 4.92 | 2 | 0.59 | 0.442 | 0.69 | 3 | - | 16.9 |
| 3/4 | - | 16 |
TRK14723GS
| H3 | 1.201 | 4.33 | 2 | 0.59 | 0.442 | 0.69 | 3 | - | 17.7 |
| 3/4 | - | 16 |
TRK14725GS
| H5 | 1.201 | 4.33 | 2 | 0.59 | 0.442 | 0.69 | 3 | - | 17.7 |
| 7/8 | - | 9 |
TRK14744GS
| H4 | 1.339 | 5.51 | 2.224 | 697 | 0.523 | 0.75 | 3 | - | 19.8 |
| 7/8 | - | 9 |
TRK14746GS
| H6 | 1.339 | 5.51 | 2.224 | 697 | 0.523 | 0.75 | 3 | - | 19.8 |
| 7/8 | - | 14 |
TRK14764GS
| H4 | 1.339 | 4.92 | 2.224 | 697 | 0.523 | 0.75 | 3 | - | 20.5 |
| 7/8 | - | 14 |
TRK14766GS
| H6 | 1.339 | 4.92 | 2.224 | 697 | 0.523 | 0.75 | 3 | - | 20.5 |
| 1" | - | 8 |
TRK14786GS
| H6 | 1.496 | 6.3 | 2.5 | 0.8 | 0.6 | 0.81 | 3 | - | 22.7 |
| 1" | - | 12 |
TRK14806GS
| H6 | 1.496 | 5.51 | 2.5 | 0.8 | 0.6 | 0.81 | 3 | - | 23.5 |
| 1" | - | 14 |
TRK14816GS
| H6 | 1.496 | 5.51 | 2.5 | 0.8 | 0.6 | 0.81 | 3 | - | 23.7 |
|
|
 |
|
