Tapping
METRIC THREAD TAPS  SPIRAL FLUTED TAPS
DIN LENGTH ANSI SHANK ALUMINIUM ALLOYS

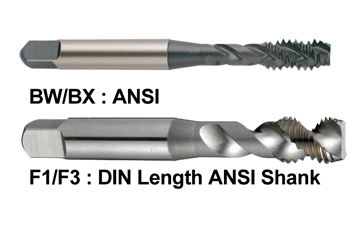

 Metric Spiral Fluted Taps Modified Bottoming Style - for Aluminum Alloys or Die Cast Aluminum
Size Pitch No. of Flute Limits ANSI DIN Length / ANSI Shank
Bright Finish Hardslick Coated Bright Finish Hardslick Coated
EDP No. EDP No. EDP No. EDP No.
M3 0.5 2 D3 BW203 BX203 F1203 F3203
M4 0.7 2 D4 BW244 BX244 F1244 F3244
M5 0.8 2 D5 BW285 BX285 F1285 F3285
M6 1 2 D5 BW315 BX315 F1315 F3315
M8 1.25 2 D5 BW365 BX365 F1365 F3365
M10 1.5 2 D6 BW426 BX426 F1426 F3426
M10 1.25 2 D5 BW435 BX435 F1435 F3435
