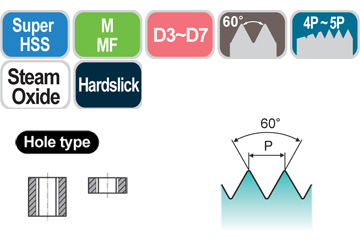

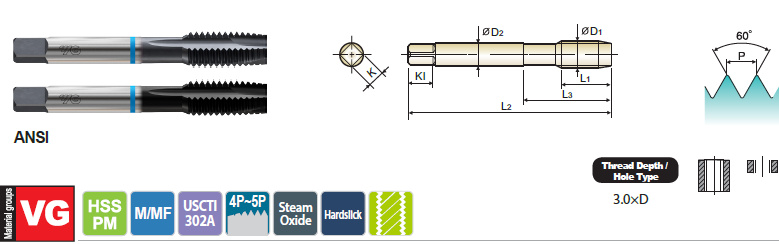

BLUE RING SPIRAL POINT Taps, ANSI Dimensions, for Steels & Stainless Steels up to 35HRc, and Exotics (N7,N8)

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide Hardslick L2 L1 L3 D2 K Kl
M3 0.5 N7203 N8203 D3 1.937 0.374 0.646 0.141 0.110 0.190 3
M3.5 0.6 N7224 N8224 D4 2.000 0.413 0.709 0.141 0.110 0.190 3
M4 0.7 N7244 N8244 D4 2.126 0.453 0.768 0.168 0.131 0.250 3
M5 0.8 N7284 N8284 D4 2.374 0.531 0.933 0.194 0.152 0.250 3
M6 1.0 N7315 N8315 D5 2.500 0.591 1.000 0.255 0.191 0.310 3
M7 1.0 N7345 N8345 D5 2.500 0.669 1.126 0.318 0.238 0.380 3
M8 1.25 N7365 N8365 D5 2.720 0.669 1.126 0.318 0.238 0.380 3
M8 1.0 N7375 N8375 D5 2.720 0.669 1.126 0.318 0.238 0.380 3
M10 1.5 N7426 N8426 D6 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 N7435 N8435 D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 N7506 N8506 D6 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 N7525 N8525 D5 3.374 0.984 1.657 0.367 0.275 0.440 3
M14 2.0 N7547 N8547 D7 3.594 0.984 1.657 0.429 0.322 0.500 3
M14 1.5 N7556 N8556 D6 3.594 0.984 1.657 0.429 0.322 0.500 3
M16 2.0 N7607 N8607 D7 3.811 1.083 1.811 0.480 0.360 0.560 3
M16 1.5 N7616 N8616 D6 3.811 1.083 1.811 0.480 0.360 0.560 3
M18 2.5 N7657 N8657 D7 4.031 1.083 1.811 0.542 0.406 0.630 3
M18 1.5 N7676 N8676 D6 4.031 1.083 1.811 0.542 0.406 0.630 3
