Tapping Home > Tapping > UNIFED THREAD TAPS > HAND TAPS

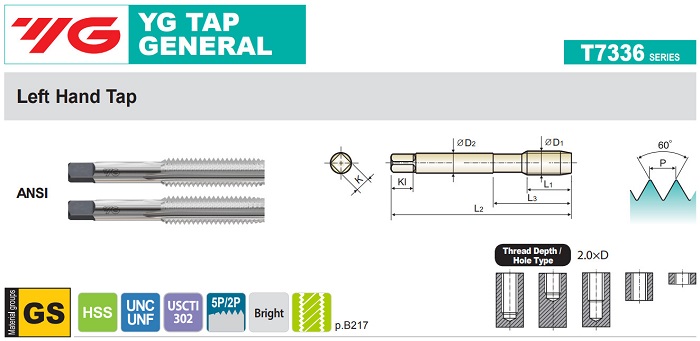

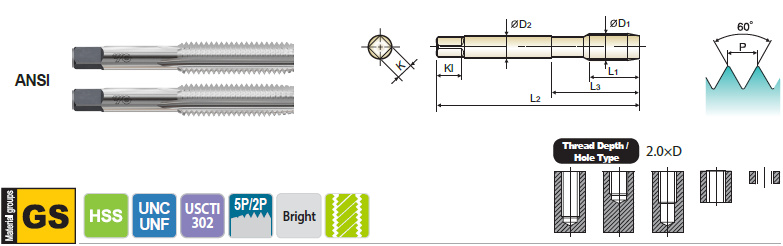

Left Hand Tap - T7336 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
Bright
D1 Plug Bottoming L2 L1 L3 D2 K Kl
#6 32UNC T7336247 T7336248 H3 2.000 0.689 0.965 0.141 0.110 0.190 3
#6 40UNF T7336267 T7336268 H2 2.000 0.689 0.965 0.141 0.110 0.190 3
#8 32UNC T7336287 T7336288 H3 2.126 0.752 1.047 0.168 0.131 0.250 4
#8 36UNF T7336307 T7336308 H2 2.126 0.752 1.047 0.168 0.131 0.250 4
#10 24UNC T7336327 T7336328 H3 2.374 0.906 1.220 0.194 0.152 0.250 4
#10 32UNF T7336347 T7336348 H3 2.374 0.906 1.220 0.194 0.152 0.250 4
1/4 20UNC T7336407 T7336408 H3 2.500 1.000 1.354 0.255 0.191 0.310 4
1/4 28UNF T7336427 T7336428 H3 2.500 1.000 1.354 0.255 0.191 0.310 4
5/16 18UNC T7336447 T7336448 H3 2.720 1.126 1.500 0.318 0.238 0.380 4
5/16 24UNF T7336467 T7336468 H3 2.720 1.126 1.500 0.318 0.238 0.380 4
3/8 16UNC T7336487 T7336488 H3 2.937 1.252 1.646 0.381 0.286 0.440 4
3/8 24UNF T7336507 T7336508 H3 2.937 1.252 1.646 0.381 0.286 0.440 4
7/16 14UNC T7336527 T7336528 H3 3.157 1.437 - 0.323 0.242 0.410 4
7/16 20UNF T7336547 T7336548 H3 3.157 1.437 - 0.323 0.242 0.410 4
1/2 13UNC T7336567 T7336568 H3 3.374 1.657 - 0.367 0.275 0.440 4
1/2 20UNF T7336587 T7336588 H3 3.374 1.657 - 0.367 0.275 0.440 4
9/16 12UNC T7336607 T7336608 H3 3.594 1.657 - 0.429 0.322 0.500 4
9/16 18UNF T7336627 T7336628 H3 3.594 1.657 - 0.429 0.322 0.500 4
5/8 11UNC T7336647 T7336648 H3 3.811 1.811 - 0.480 0.360 0.560 4
5/8 18UNF T7336667 T7336668 H3 3.811 1.811 - 0.480 0.360 0.560 4
3/4 10UNC T7336707 T7336708 H3 4.252 2.000 - 0.590 0.442 0.690 4
3/4 16UNF T7336727 T7336728 H3 4.252 2.000 - 0.590 0.442 0.690 4
7/8 9UNC T7336747 T7336748 H4 4.689 2.220 - 0.697 0.523 0.750 4
7/8 14UNF T7336767 T7336768 H4 4.689 2.220 - 0.697 0.523 0.750 4
1 8UNC T7336787 T7336788 H4 5.126 2.500 - 0.800 0.600 0.810 4
1 12UNF T7336807 T7336808 H4 5.126 2.500 - 0.800 0.600 0.810 4
