Tapping Home > Tapping > UNIFIED THREAD TAPS > SPIRAL POINTED TAPS

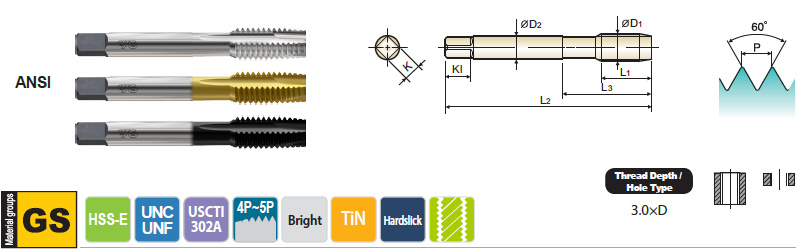

Spiral Point Tap Plug Style for General Purpose - K9 / L0 / L1 SERIES
View TAP SELECTOR / CUTTING DATA

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiN Hardslick L2 L1 L3 D2 K KI
#2 56UNC K9082 L0082 L1082 H2 1.752 0.437 0.650 0.141 0.110 0.190 2
#4 40UNC K9162 L0162 L1162 H2 1.874 0.311 0.563 0.141 0.110 0.190 2
#5 40UNC K9202 L0202 L1202 H2 1.937 0.311 0.626 0.141 0.110 0.190 2
#6 32UNC K9243 L0243 L1243 H3 2.000 0.374 0.689 0.141 0.110 0.190 2
#8 32UNC K9283 L0283 L1283 H3 2.126 0.374 0.752 0.168 0.131 0.250 2
#10 24UNC K9323 L0323 L1323 H3 2.374 0.500 0.906 0.194 0.152 0.250 2
#10 32UNC K9343 L0343 L1343 H3 2.374 0.500 0.906 0.194 0.152 0.250 2
1/4 20UNC K9403 L0403 L1403 H3 2.500 0.626 1.000 0.255 0.191 0.310 2
1/4 20UNC K9405 L0405 L1405 H5 2.500 0.626 1.000 0.255 0.191 0.310 2
1/4 28UNF K9423 L0423 L1423 H3 2.500 0.626 1.000 0.255 0.191 0.310 3
5/16 18UNC K9443 L0443 L1443 H3 2.720 0.689 1.126 0.318 0.238 0.380 2
5/16 18UNC K9445 L0445 L1445 H5 2.720 0.689 1.126 0.318 0.238 0.380 2
5/16 24UNF K9463 L0463 L1463 H3 2.720 0.689 1.126 0.318 0.238 0.380 3
3/8 16UNC K9483 L0483 L1483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC K9485 L0485 L1485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF K9503 L0503 L1503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC K9523 L0523 L1523 H3 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 14UNC K9525 L0525 L1525 H5 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF K9543 L0543 L1543 H3 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF K9545 L0545 L1545 H5 3.157 0.874 1.437 0.323 0.242 0.410 3
1/2 13UNC K9563 L0563 L1563 H3 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 13UNC K9565 L0565 L1565 H5 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF K9583 L0583 L1583 H3 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF K9585 L0585 L1585 H5 3.374 0.937 1.594 0.367 0.275 0.440 3
9/16 12UNC K9603 L0603 L1603 H3 3.594 1.000 1.657 0.429 0.322 0.500 3
9/16 18UNF K9623 L0623 L1623 H3 3.594 1.000 1.657 0.429 0.322 0.500 3
9/16 18UNF K9625 L0625 L1625 H5 3.594 1.000 1.657 0.429 0.322 0.500 3
5/8 11UNC K9643 L0643 L1643 H3 3.811 1.094 1.811 0.480 0.360 0.560 3
5/8 11UNC K9645 L0645 L1645 H5 3.811 1.094 1.811 0.480 0.360 0.560 3
5/8 18UNF K9663 L0663 L1663 H3 3.811 1.094 1.811 0.480 0.360 0.560 3
5/8 18UNF K9665 L0665 L1665 H5 3.811 1.094 1.811 0.480 0.360 0.560 3
3/4 10UNC K9703 L0703 L1703 H3 4.252 1.220 2.000 0.590 0.442 0.690 3
3/4 10UNC K9705 L0705 L1705 H5 4.252 1.220 2.000 0.590 0.442 0.690 3
3/4 16UNF K9723 L0723 L1723 H3 4.252 1.220 2.000 0.590 0.442 0.690 3
3/4 16UNF K9725 L0725 L1725 H5 4.252 1.220 2.000 0.590 0.442 0.690 3
7/8 9UNC K9746 L0746 L1746 H6 4.689 1.343 2.220 0.697 0.523 0.750 3
7/8 14UNF K9764 L0764 L1764 H4 4.689 1.343 2.220 0.697 0.523 0.750 3
7/8 14UNF K9766 L0766 L1766 H6 4.689 1.343 2.220 0.697 0.523 0.750 3
1 8UNC K9786 L0786 L1786 H6 5.126 1.500 2.500 0.800 0.600 0.810 3
1 12UNF K9806 L0806 L1806 H6 5.126 1.500 2.500 0.800 0.600 0.810 3
