Tool Selection > Rotary Tooling > CAT 40/50
|
|
 |
|
|
| ER COLLET CHUCKS HIGH BALANCED SERIES |
|
|
|
|
|
|
|
|
|

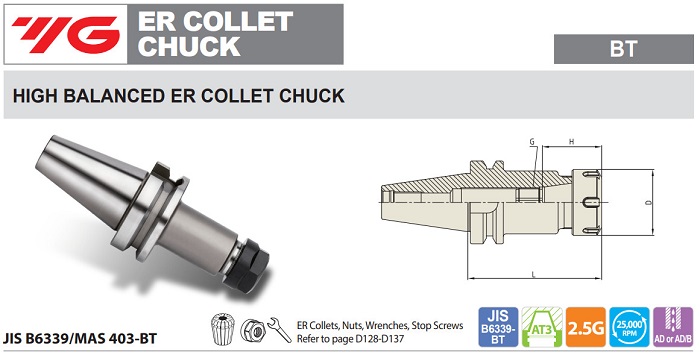

 HIGH BALANCED STUB ER COLLET CHUCK
|
| EDP No. |
Type |
Taper No. |
d |
L |
D |
Collet
Series |
| BK232B25 | CAT 40-ER20-2.55 | 40 | .039-.511 | 2.55 | 1.26 | ER20
| | BK233B25 | CAT 40-ER25-2.50 | 40 | .039-.629 | 2.50 | 1.65 | ER25
| | BK234B25 | CAT 40-ER32-2.70 | 40 | .078-.787 | 2.70 | 1.88 | ER32
|
| HIGH BALANCED STANDARD ER COLLET CHUCK
|
| EDP No. |
Type |
Taper No. |
d |
L |
D |
Collet
Series |
| BK030B25 | CAT 40-ER11-3.00 | 40 | .019-.275 | 3.00 | 0.63 | ER11 |
| BK031B25 | CAT 40-ER16-2.88 | 40 | 1/32-13/32 | 2.88 | 1.08 | ER16 |
| BK032B25 | CAT 40-ER20-4.00 | 40 | .039-.511 | 4.00 | 1.26 | ER20 |
| BK133B25 | CAT 40-ER25-4.00 | 40 | .039-.629 | 4.00 | 1.65 | ER25 |
| BK134B25 | CAT 40-ER32-4.00 | 40 | .078-.787 | 4.00 | 1.88 | ER32 |
| HIGH BALANCED EXTENDED ER COLLET CHUCK
|
| EDP No. |
Type |
Taper No. |
d |
L |
D |
Collet
Series |
| BK331B25 | CAT 40-ER16-4.88 | 40 | 1/32-13/32 | 4.88 | 1.08 | ER16 |
| BK332B25 | CAT 40-ER20-6.00 | 40 | .039-.511 | 6.00 | 1.26 | ER20 |
| BK333B25 | CAT 40-ER25-6.00 | 40 | .039-.629 | 6.00 | 1.65 | ER25 |
| BK334B25 | CAT 40-ER32-6.00 | 40 | .078-.787 | 6.00 | 1.88 | ER32 |
| HIGH BALANCED EXTRA EXTENDED ER COLLET CHUCK
|
| EDP No. |
Type |
Taper No. |
d |
L |
D |
Collet
Series |
| BK432B25 | CAT 40-ER20-8.00 | 40 | .039-.511 | 8.00 | 1.26 | ER20 |
|
| |
