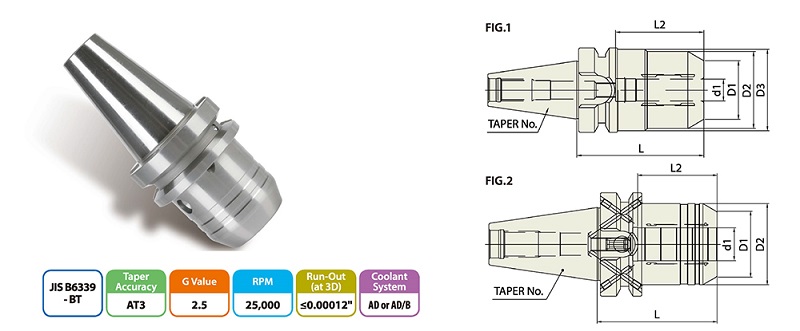

HYDRAULIC CHUCK (Power E Hydro) - BT
|
|
|
|
|
|
|
|
 HYDRAULIC CHUCK (Power E Hydro) BT |
| TAPER NO. |
MODEL No. |
d1 |
D1 |
D2 |
D3 |
L |
L2 |
G |
FIG. |
EDP NO. |
| 30 | BT30-HC3/4P-3.543 |
0.75 |
1.496 |
1.653 |
1.751 |
3.543 |
1.889 |
M8x1.0mm | 1 | WG002PE |
| 40 | BT40AD/B-HC3/4P-2.854 |
0.75 |
1.496 |
1.938 |
- |
2.854 |
1.889 |
M8x1.0mm | 2 | WH002PE |
| 50 | BTSOAD/B-HC1 1/4P-3.543 |
1.25 |
2.303 |
2.834 |
- |
3.543 |
2.244 |
M8x1.0mm |
2 |
WI002PE |
| TAPER NO. |
MODEL No. |
d1 |
D1 |
D2 |
D3 |
L |
L2 |
G |
FIG. |
EDP NO. |
| 30 |
BT30-HC1 2P-69 |
12 |
32 |
42 |
44.5 |
69 |
41 | M8x1.0 | 1 | WG100PE |
| BT30-HC20P-90 |
20 |
38 |
42 |
44.5 |
90 |
48 | M8x1.0 | 1 | WG102PE |
| 40 | BT40AD/B-HC1 2P-58 |
12 |
32 |
42 |
- |
58 |
41 |
M8x1.0 |
2 |
WH100PE |
| BT40AD/B-HC20P-72.5 |
20 |
38 |
49.25 |
- |
72.5 |
48 | M8x1.0 | 2 | WH102PE |
| 50 | BTSOAD/B-HC20P-83.5 |
20 |
38 |
49.25 |
- |
83.5 |
48 | M8x1.0 | 2 | WI100PE |
| BTSOAD/B-HC32P-90 |
32 |
58.5 |
72 |
- |
90 |
57 | M8x1.0 | 2 | WI102PE |
|
|
 |
|
