Rotary Tooling Home > Rotary Tooling > HYDRAULIC CHUCK
HYDRAULIC CHUCK - CAT - INCH

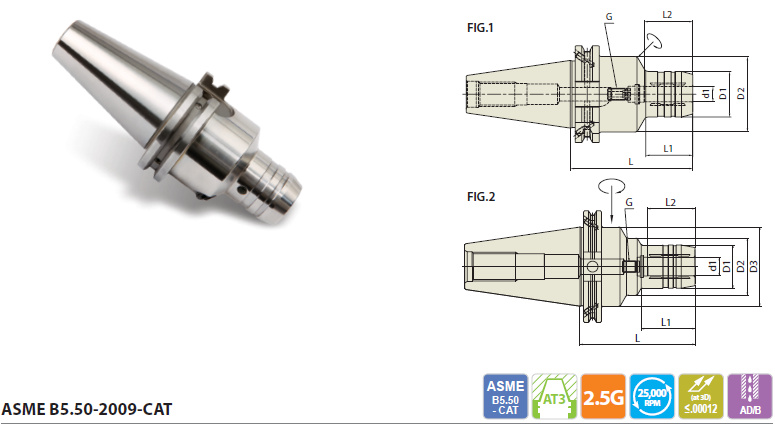

EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L1 L2 G FIG.
WK020 40 CAT40 AD/B - HC 1/4 - 4.00 0.250 1.024 1.750 - 4.000 1.280 1.063 M5x0.8mm 1
WK022 CAT40 AD/B - HC 3/8 - 4.00 0.375 1.181 1.750 - 4.000 1.634 1.260 M6x1.0mm 1
WK024 CAT40 AD/B - HC 1/2 - 4.00 0.500 1.260 1.750 - 4.000 1.634 1.457 M10x1.0mm 1
WK026 CAT40 AD/B - HC 5/8 - 4.00 0.625 1.496 1.750 - 4.000 1.949 1.654 M10x1.0mm 1
WK028 CAT40 AD/B - HC 3/4 - 4.00 0.750 1.654 1.750 - 4.000 1.949 1.654 M10x1.0mm 1
WK030 CAT40 AD/B - HC 1 - 4.00 1.000 2.165 2.480 - 4.000 2.618 1.890 M16x1.0mm 1
WK032 CAT40 AD/B - HC 1 1/4 - 4.00 1.250 2.480 3.150 - 4.000 1.378 2.165 M16x1.0mm 1
WL020 50 CAT50 AD/B - HC 1/4 - 4.00 0.250 1.024 1.978 2.752 4.000 1.280 1.063 M5x0.8mm 2
WL022 CAT50 AD/B - HC 3/8 - 4.00 0.375 1.181 1.978 2.752 4.000 1.417 1.260 M6x1.0mm 2
WL024 CAT50 AD/B - HC 1/2 - 4.00 0.500 1.260 1.978 2.752 4.000 1.634 1.457 M10x1.0mm 2
WL026 CAT50 AD/B - HC 5/8 - 4.00 0.625 1.496 1.978 2.752 4.000 1.870 1.654 M10x1.0mm 2
WL028 CAT50 AD/B - HC 3/4 - 4.00 0.750 1.654 1.978 2.752 4.000 1.949 1.654 M10x1.0mm 2
WL030 CAT50 AD/B - HC 1 - 4.00 1.000 2.244 2.480 2.752 4.000 1.949 1.890 M16x1.0mm 2
WL032 CAT50 AD/B - HC 1 1/4 - 4.00 1.250 2.520 - 2.752 4.000 2.559 2.165 M16x1.0mm 2
