Rotary Tooling
  HYDRAULIC CHUCK

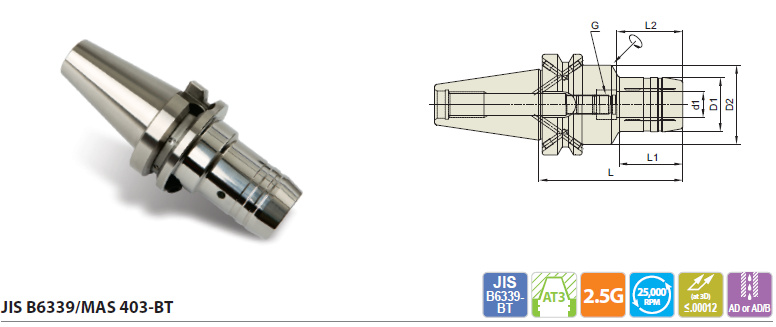

HYDRAULIC CHUCK (SLIM) BT INCH

  HYDRAULIC CHUCK (SLIM) BT INCH
TAPER NO. MODEL No. d1 D1 D2 L L1 L2 G EDP NO.
30BT30AD/B - HC 1/4 - 2.750.250 1.024 1.7522.750 1.161 1.063 M5x0.8mmWG020
BT30AD/B - HC 5/16 - 2.750.313 1.102 1.7522.750 1.181 1.063 M6x1.0mmWG022
BT30AD/B - HC 3/8 - 2.950.375 1.181 1.7522.950 1.220 1.260 M8x1.0mmWG024
BT30AD/B - HC 1/2 - 3.350.500 1.260 1.7723.350 1.575 1.457 M10x1.0mmWG026
BT30AD/B - HC 5/8 - 3.540.625 1.496 1.7723.540 1.811 1.654 M10x1.0mmWG028
BT30AD/B - HC 3/4 - 3.540.750 1.654 1.7723.540 1.890 1.654 M6x1.0mmWG030
40BT40AD/B - HC 1/4 - 3.540.250 1.024 1.6933.540 1.181 1.063 M5x0.8mmWH020
BT40AD/B - HC 5/16 - 3.540.313 1.102 1.7523.540 1.181 1.063 M6x1.0mmWH022
BT40AD/B - HC 3/8 - 3.540.375 1.181 1.7523.540 1.260 1.260 M8x1.0mmWH024
BT40AD/B - HC 1/2 - 3.540.500 1.260 1.7523.540 1.378 1.457 M10x1.0mmWH026
BT40AD/B - HC 5/8 - 3.540.625 1.496 1.870 3.540 1.575 1.654 M12x1.0mmWH028
BT40AD/B - HC 3/4 - 3.540.750 1.654 1.870 3.540 1.575 1.654 M16x1.0mmWH030
BT40AD/B - HC 1 - 3.941.000 1.969 1.870 3.940 1.772 1.890 M16x1.0mmWH032
BT40AD/B - HC 1 1/4 - 4.131.250 2.362 -4.130 1.969 2.165 M16x1.0mmWH034
