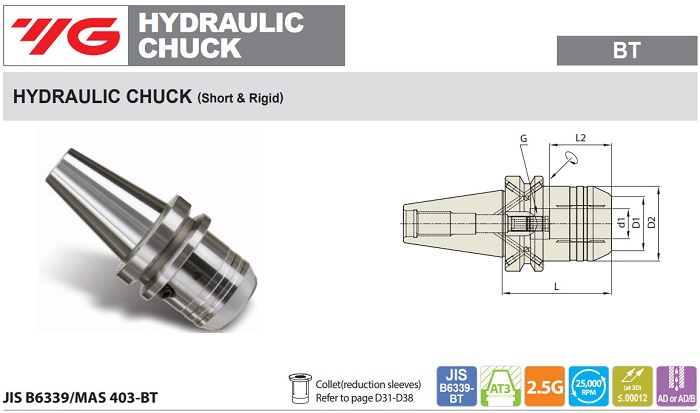

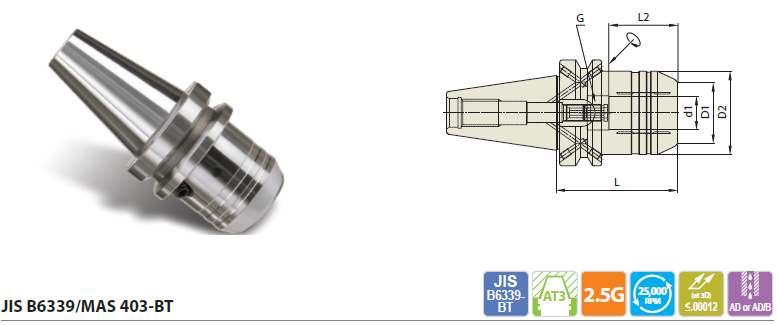

HYDRAULIC CHUCK (SHORT & RIGID) BT
|
|
|
|
|
|
|
|
 HYDRAULIC CHUCK (SHORT & RIGID) BT |
| TAPER NO. |
MODEL No. |
d1 |
D1 |
D2 |
L |
L2 |
G |
EDP NO. |
| 30 | BT30-HC20S-85 | 20 | 41 | 44 | 85 | 42 | M6x1.0mm | WG100SNR |
| 40 | BT40AD/B-HC12S-58 | 12 | 32 | 42 | 58 | 37 | M8x1.0mm | WH100SNR |
| BT40AD/B-HC20S-72.5 | 20 | 38 | 49.25 | 73 | 42 | M8x1.0mm | WH102SNR |
| BT40AD/B-HC1/2S-2.284 | | | | | | |
WH100SNRI |
| BT40AD/B-HC3/4S-2.854 (72.5mm) | | | | | | |
WH102SNRI |
| BT40AD/B-HC1S-3.74 (95mm) | | | | | | |
WH103SNRI |
|
|
 |
|
