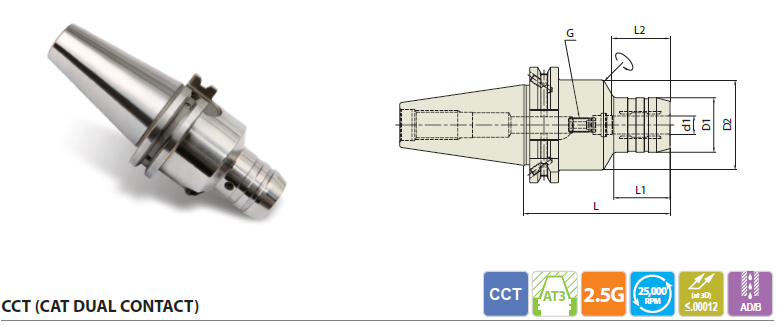

DUAL CONTACT HYDRAULIC CHUCK - CCT - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G
WB020 40 CCT40 AD/B - HC 1/4 - 3.54 0.250 1.024 1.752 3.543 1.280 1.063 M5x0.8mm
WB022 CCT40 AD/B - HC 5/16 - 3.54 0.313 1.102 1.752 3.543 1.280 1.063 M6x1.0mm
WB024 CCT40 AD/B - HC 3/8 - 3.54 0.375 1.181 1.752 3.543 1.634 1.260 M8x1.0mm
WB026 CCT40 AD/B - HC 1/2 - 3.54 0.500 1.260 1.752 3.543 1.634 1.457 M10x1.0mm
WB028 CCT40 AD/B - HC 5/8 - 3.54 0.625 1.496 1.752 3.543 1.949 1.654 M10x1.0mm
WB030 CCT40 AD/B - HC 3/4 - 3.54 0.750 1.654 1.752 3.543 1.949 1.654 M10x1.0mm
WB032 CCT40 AD/B - HC 1 - 3.94 1.000 2.165 2.480 3.937 2.559 1.890 M16x1.0mm
WB034 CCT40 AD/B - HC 1 1/4 - 4.13 1.250 2.480 3.150 4.134 1.378 2.165 M16x1.0mm
WC020 50 CCT50 AD/B - HC 1/4 - 3.54 0.250 1.024 1.969 3.543 1.181 1.063 M5x0.8mm
WC022 CCT50 AD/B - HC 5/16 - 3.54 0.313 1.102 1.969 3.543 1.181 1.063 M6x1.0mm
WC024 CCT50 AD/B - HC 3/8 - 3.54 0.375 1.181 1.969 3.543 1.260 1.260 M8x1.0mm
WC026 CCT50 AD/B - HC 1/2 - 3.54 0.500 1.260 1.969 3.543 1.378 1.457 M10x1.0mm
WC028 CCT50 AD/B - HC 5/8 - 3.54 0.625 1.496 1.969 3.543 1.575 1.654 M10x1.0mm
WC030 CCT50 AD/B - HC 3/4 - 3.54 0.750 1.654 1.969 3.543 1.575 1.654 M10x1.0mm
WC032 CCT50 AD/B - HC 1 - 4.13 1.000 2.244 2.480 4.134 2.047 1.890 M16x1.0mm
WC034 CCT50 AD/B - HC 1 1/4-4.53 1.250 2.480 2.953 4.528 2.441 2.165 M16x1.0mm
