Rotary Tooling
  HYDRAULIC CHUCK

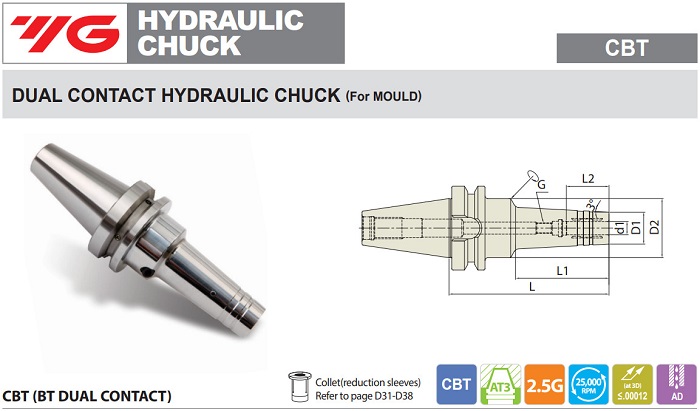

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT

  DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT
TAPER No. MODEL No. d1 D1 D2 L L1 L2 G EDP NO.
40CBT40-HMC1/4-4.72 0.250 0.787 1.752 4.720 2.756 1.063 M5x0.8mmWE020HMC
CBT40-HMC1/4-5.90 0.250 0.787 1.752 5.900 3.937 1.063 M5x0.8mmWE022HMC
CBT40-HMC5/16-4.72 0.313 0.866 1.752 4.720 2.756 1.063 M6x1.0mmWE024HMC
CBT40-HMC5/16-5.90 0.313 0.866 1.752 5.900 3.937 1.063 M6x1.0mmWE026HMC
CBT40-HMC3/8-4.72 0.375 0.945 1.752 4.720 2.756 1.260 M8x1.0mmWE028HMC
CBT40-HMC3/8-5.90 0.375 0.945 1.752 5.900 3.937 1.260 M8x1.0mmWE030HMC
CBT40-HMC1/2-4.72 0.500 0.984 1.752 4.720 2.756 1.457 M10x1.0mmWE032HMC
CBT40-HMC1/2-5.90 0.500 0.984 1.752 5.900 3.937 1.457 M10x1.0mmWE034HMC
CBT40-HMC5/8-4.72 0.625 1.260 1.752 4.720 2.756 1.654 M12x1.0mmWE036HMC
CBT40-HMC5/8-5.90 0.625 1.260 1.752 5.900 3.937 1.654 M12x1.0mmWE038HMC
CBT40-HMC3/4-4.72 0.750 1.339 1.732 4.720 - 1.654 M16x1.0mmWE040HMC
CBT40-HMC3/4-5.90 0.750 1.339 1.850 5.900 - 1.654 M16x1.0mmWE042HMC
Unit : mm
TAPER NO.MODEL No.d1D1D2LL1L2GEDP NO.
40CBT40-HMC6-12062044.51207027M5x0.8mmWE100HMC
CBT40-HMC6-15062044.515010027M5x0.8mmWE102HMC
CBT40-HMC8-12082244.51207027M6x1.0mmWE104HMC
CBT40-HMC8-15082244.515010027M6x1.0mmWE106HMC
CBT40-HMC10-120102444.51207032M8x1.0mmWE108HMC
CBT40-HMC10-150102444.515010032M8x1.0mmWE110HMC
CBT40-HMC12-120122544.51207037M10x1.0mmWE112HMC
CBT40-HMC12-150122544.515010037M10x1.0mmWE114HMC
CBT40-HMC16-120163244.51207042M12x1.0mmWE116HMC
CBT40-HMC16-150163244.515010042M12x1.0mmWE118HMC
CBT40-HMC20-120203444120-42M16x1.0mmWE120HMC
CBT40-HMC20-150203447150-42M16x1.0mmWE122HMC
