Rotary Tooling Home > Rotary Tooling > HYDRAULIC CHUCK

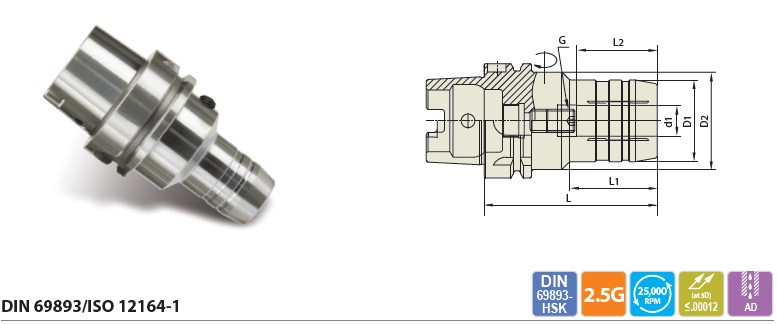

DUAL CONTACT HYDRAULIC CHUCK - HSK - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G
WQ020 63A HSK63A - HC 1/4 - 2.76 0.250 1.024 1.969 2.756 0.945 1.063 M5x0.8mm
WQ022 HSK63A - HC 3/8 - 3.15 0.375 1.181 1.969 3.150 1.378 1.260 M8x1.0mm
WQ024 HSK63A - HC 1/2 - 3.35 0.500 1.260 1.969 3.346 1.575 1.457 M10x1.0mm
WQ026 HSK63A - HC 3/4 - 3.54 0.750 1.654 1.969 3.543 1.890 1.654 M16x1.0mm
WQ028 HSK63A - HC 1 - 4.72 1.000 2.244 2.480 4.724 2.323 1.890 M16x1.0mm
WQ030 HSK63A - HC 1 1/4 - 4.92 1.250 2.520 2.953 4.921 2.480 2.165 M16x1.0mm
WR020 100A HSK100A - HC 1/4 - 2.95 0.250 1.024 1.969 2.953 1.024 1.063 M5x0.8mm
WR022 HSK100A - HC 3/8 - 3.54 0.375 1.181 1.969 3.543 1.654 1.260 M8x1.0mm
WR024 HSK100A - HC 1/2 - 3.74 0.500 1.260 1.969 3.740 1.850 1.457 M10x1.0mm
WR026 HSK100A - HC 3/4 - 4.13 0.750 1.654 1.969 4.134 2.323 1.654 M16x1.0mm
WR028 HSK100A - HC 1 - 4.33 1.000 2.244 2.480 4.331 2.441 1.890 M16x1.0mm
WR032 HSK100A - HC 1 1/4 - 4.33 1.250 2.520 2.953 4.331 2.441 2.165 M16x1.0mm
