Rotary Tooling
  HYDRAULIC CHUCK

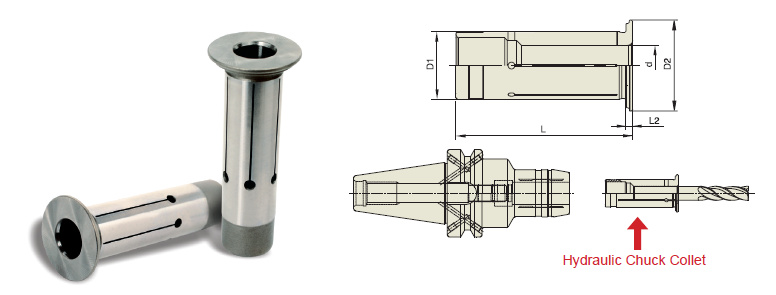

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/INCH

  HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/INCH
TYPE d D1 D2 L L2 EDP No.
HS121/8" 0.125 0.472 0.748 1.850 0.079 512108
3/16" 0.188 0.472 0.748 1.850 0.079 512316
1/4" 0.250 0.472 0.748 1.850 0.079 512104
5/16" 0.313 0.472 0.748 1.850 0.079 512516
HS201/8" 0.125 0.787 0.945 1.988 0.079 520108
3/16" 0.188 0.787 0.945 1.988 0.079 520316
1/4" 0.250 0.787 0.945 1.988 0.079 520104
5/16" 0.313 0.787 0.945 1.988 0.079 520516
3/8" 0.375 0.787 0.945 1.988 0.079 520308
1/2" 0.500 0.787 0.945 1.988 0.079 520102
5/8" 0.625 0.787 0.945 1.988 0.079 520508
HS321/8" 0.125 1.260 1.417 2.382 0.118 532108
3/16" 0.188 1.260 1.417 2.382 0.118 532316
1/4" 0.250 1.260 1.417 2.382 0.118 532104
5/16" 0.313 1.260 1.417 2.382 0.118 532516
3/8" 0.375 1.260 1.417 2.382 0.118 532308
1/2" 0.500 1.260 1.417 2.382 0.118 532102
5/8" 0.625 1.260 1.417 2.382 0.118 532508
3/4" 0.750 1.260 1.417 2.382 0.118 532304
1 1.000 1.260 1.417 2.382 0.118 532100
