Home >
Rotary Tooling > HYDRAULIC CHUCK
|
 |
|
|
|
|

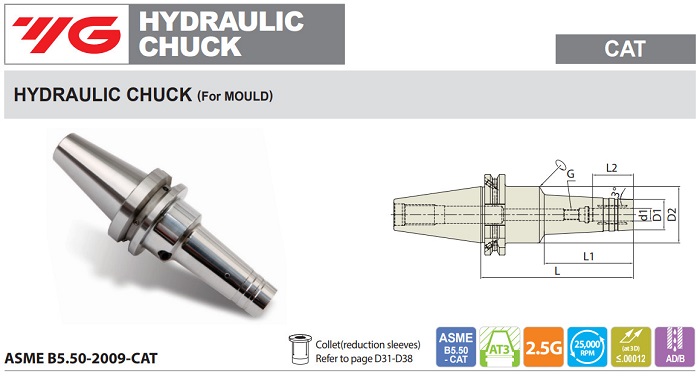

HYDRAULIC CHUCK (For MOULD) CAT
|
|
|
|
|
|
|
|
 HYDRAULIC CHUCK (For MOULD) CAT |
| TAPER NO. |
MODEL No. |
d1 |
D1 |
D2 |
L |
L1 |
L2 |
G |
EDP NO. |
| 40 | CAT40AD/B - HMC 1/4 - 4.72 | 0.250 | 0.787 | 1.949 | 4.720 | 2.756 | 1.063 | M5x0.8mm | WK020HMC |
| CAT40AD/B - HMC 1/4 - 5.90 | 0.250 | 0.787 | 1.949 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WK022HMC |
| CAT40AD/B - HMC 5/16 - 4.72 | 0.313 | 0.866 | 1.949 | 4.720 | 2.756 | 1.063 | M6x1.0mm | WK024HMC |
| CAT40AD/B - HMC 5/16 - 5.90 | 0.313 | 0.866 | 1.949 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WK026HMC |
| CAT40AD/B - HMC 3/8 - 4.72 | 0.375 | 0.945 | 1.949 | 4.720 | 2.756 | 1.260 | M8x1.0mm | WK028HMC |
| CAT40AD/B - HMC 3/8 - 5.90 | 0.375 | 0.945 | 1.949 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WK030HMC |
| CAT40AD/B - HMC 1/2 - 4.72 | 0.500 | 0.984 | 1.949 | 4.720 | 2.756 | 1.457 | M10x1.0mm | WK032HMC |
| CAT40AD/B - HMC 1/2 - 5.90 | 0.500 | 0.984 | 1.949 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WK034HMC |
| CAT40AD/B - HMC 5/8 - 4.72 | 0.625 | 1.260 | 1.949 | 4.720 | 2.756 | 1.654 | M12x1.0mm | WK036HMC |
| CAT40AD/B - HMC 5/8 - 5.90 | 0.625 | 1.260 | 1.949 | 5.900 | 3.937 | 1.654 | M12x1.0mm | WK038HMC |
| CAT40AD/B - HMC 3/4 - 4.72 | 0.750 | 1.417 | 1.949 | 4.720 | 2.756 | 1.654 | M16x1.0mm | WK040HMC |
| CAT40AD/B - HMC 3/4 - 5.90 | 0.750 | 1.417 | 1.949 | 5.900 | 3.937 | 1.654 | M16x1.0mm | WK042HMC |
| 50 | CAT50AD/B - HMC 1/4 - 5.90 | 0.250 | 0.787 | 1.752 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WL020HMC |
| CAT50AD/B - HMC 5/16 - 5.90 | 0.313 | 0.866 | 1.752 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WL022HMC |
| CAT50AD/B - HMC 3/8 - 5.90 | 0.375 | 0.945 | 1.752 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WL024HMC |
| CAT50AD/B - HMC 1/2 - 5.90 | 0.500 | 0.984 | 1.752 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WL026HMC |
| CAT50AD/B - HMC 5/8 - 5.90 | 0.625 | 1.260 | 1.752 | 5.900 | 3.937 | 1.457 | M12x1.0mm | WL028HMC |
| CAT50AD/B - HMC 3/4 - 5.90 | 0.750 | 1.417 | 1.752 | 5.900 | 3.937 | 1.457 | M16x1.0mm | WL030HMC |
| | | | | | | | | |
| | | | | | | | | |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | CAT40AD/B-HMC6-120 | 6 | 20 | 49.5 | 120 | 70 | 27 | M5X0.8mm | WK100HMC |
| CAT40AD/B-HMC6-150 | 6 | 20 | 49.5 | 150 | 100 | 27 | M5X0.8mm | WK102HMC |
| CAT40AD/B-HMC8-120 | 8 | 22 | 49.5 | 120 | 70 | 27 | M6X1.0mm | WK104HMC |
| CAT40AD/B-HMC8-150 | 8 | 22 | 49.5 | 150 | 100 | 27 | M6X1.0mm | WK106HMC |
| CAT40AD/B-HMC10-120 | 10 | 24 | 49.5 | 120 | 70 | 32 | M8X1.0mm | WK108HMC |
| CAT40AD/B-HMC10-150 | 10 | 24 | 49.5 | 150 | 100 | 32 | M8X1.0mm | WK110HMC |
| CAT40AD/B-HMC12-120 | 12 | 25 | 49.5 | 120 | 70 | 37 | M10X1.0mm | WK112HMC |
| CAT40AD/B-HMC12-150 | 12 | 25 | 49.5 | 150 | 100 | 37 | M10X1.0mm | WK114HMC |
| CAT40AD/B-HMC16-120 | 16 | 32 | 49.5 | 120 | 70 | 42 | M12X1.0mm | WK116HMC |
| CAT40AD/B-HMC16-150 | 16 | 32 | 49.5 | 150 | 100 | 42 | M12X1.0mm | WK118HMC |
| CAT40AD/B-HMC20-120 | 20 | 36 | 49.5 | 120 | 70 | 42 | M16X1.0mm | WK120HMC |
| CAT40AD/B-HMC20-150 | 20 | 36 | 49.5 | 150 | 100 | 42 | M16X1.0mm | WK122HMC |
| 50 | CAT50AD/B-HMC6-150 | 6 | 20 | 44.5 | 150 | 100 | 27 | M5X0.8mm | WL100HMC |
| CAT50AD/B-HMC8-150 | 8 | 22 | 44.5 | 150 | 100 | 27 | M6X1.0mm | WL102HMC |
| CAT50AD/B-HMC10-150 | 10 | 24 | 44.5 | 150 | 100 | 32 | M8X1.0mm | WL104HMC |
| CAT50AD/B-HMC12-150 | 12 | 25 | 44.5 | 150 | 100 | 37 | M10X1.0mm | WL106HMC |
| CAT50AD/B-HMC16-150 | 16 | 32 | 44.5 | 150 | 100 | 42 | M12X1.0mm | WL108HMC |
| CAT50AD/B-HMC20-150 | 20 | 36 | 44.5 | 150 | 100 | 42 | M16X1.0mm | WL110HMC |
|
|
 |
|
