Rotary Tooling	Home > Rotary Tooling > SHRINK FIT HOLDER

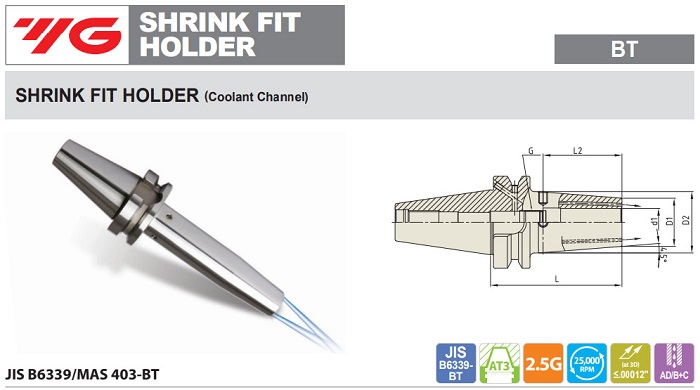

SHRINK FIT HOLDER Coolant Channel Type BT

SHRINK FIT HOLDER Coolant Channel Type BT

EDP	TAPER No.	MODEL No.	d1	D1	D2	L	L2	G
VG024J	30	BT30 - SFH 1/4C - 2.36	0.250	0.827	1.063	2.360	1.417	M5x0.8mm
VG026J	30	BT30 - SFH 3/8C - 2.36	0.375	0.945	1.180	2.360	1.654	M8x1.0mm
VG028J	30	BT30 - SFH 1/2C - 3.15	0.500	0.945	1.260	3.150	1.850	M10x1.0mm
VG030J	30	BT30 - SFH 5/8C - 3.15	0.625	1.063	1.339	3.150	1.969	M12x1.0mm
VG032J	30	BT30 - SFH 3/4C - 3.54	0.750	1.299	1.654	3.540	2.008	M16x1.0mm
VH024J	40	BT40 AD/B - SFH 1/4C - 3.54	0.250	0.827	1.063	3.540	1.417	M5x0.8mm
VH026J	40	BT40 AD/B - SFH 1/4C - 6.30	0.250	0.827	1.063	6.300	1.417	M5x0.8mm
VH028J	40	BT40 AD/B - SFH 3/8C - 3.54	0.375	0.945	1.260	3.540	1.654	M8x1.0mm
VH030J	40	BT40 AD/B - SFH 3/8C - 6.30	0.375	0.945	1.260	6.300	1.654	M8x1.0mm
VH032J	40	BT40 AD/B - SFH 1/2C - 3.54	0.500	0.945	1.260	3.540	1.850	M10x1.0mm
VH034J	40	BT40 AD/B - SFH 1/2C - 6.30	0.500	0.945	1.260	6.300	1.850	M10x1.0mm
VH036J	40	BT40 AD/B - SFH 5/8C - 3.54	0.625	1.063	1.339	3.540	1.969	M12x1.0mm
VH038J	40	BT40 AD/B - SFH 5/8C - 6.30	0.625	1.063	1.339	6.300	1.969	M12x1.0mm
VH040J	40	BT40 AD/ 4C - 3.54	0.750	1.299	1.654	3.540	2.047	M16x1.0mm
VH042J	40	BT40 AD/B - SFH 3/4C - 6.30	0.750	1.299	1.654	6.300	2.047	M16x1.0mm
VH044J	40	BT40 AD/B - SFH 1C - 3.94	1.000	1.732	2.087	3.940	2.283	M16x1.0mm
VH046J	40	BT40 AD/B - SFH 1C - 6.30	1.000	1.732	2.087	6.300	2.283	M16x1.0mm
