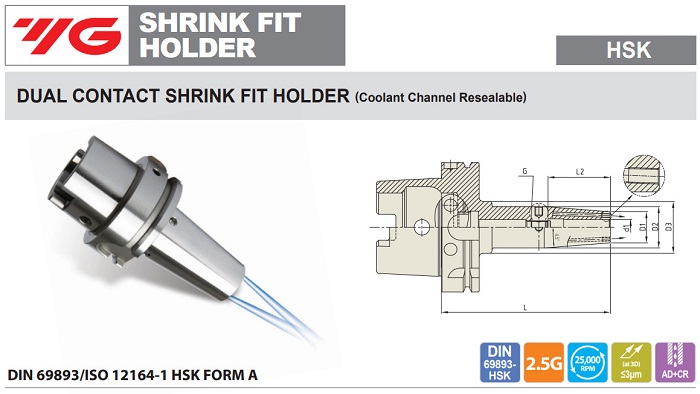

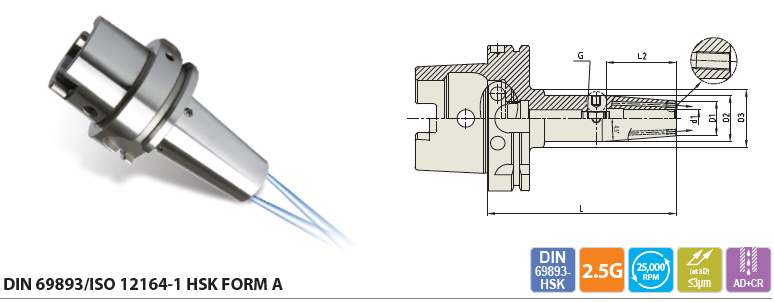

DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel Resealable) - HSK100A - METRIC

EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G WEIGHT(Kg)
P2862143C 100A HSK100A - SFH 3C -85 3 12 17 40 85 10 - -
P2862144C HSK100A - SFH 4C - 85 4 12 17 40 85 12 - -
P2862145C HSK100A - SFH 5C - 85 5 12 17 40 85 15 - -
VR111JR HSK100A - SFH 6CR - 85 6 21 27 40 85 36 M5x0.8 1.30
VR101JR HSK100A - SFH 6CR - 130 6 21 27 40 130 36 M5x0.8 -
VR112JR HSK100A - SFH 6CR - 160 6 21 27 40 160 36 M5x0.8 1.80
VR113JR HSK100A - SFH 8CR - 85 8 21 27 40 85 36 M6x1.0 1.30
VR102JR HSK100A - SFH 8CR - 130 8 21 27 40 130 36 M6x1.0 -
VR114JR HSK100A - SFH 8CR - 160 8 21 27 40 160 36 M6x1.0 1.80
VR115JR HSK100A - SFH 10CR - 90 10 24 32 40 90 42 M8x1.0 1.30
VR103JR HSK100A - SFH 10CR - 130 10 24 32 40 130 42 M8x1.0 -
VR116JR HSK100A - SFH 10CR - 160 10 24 32 40 160 42 M8x1.0 1.80
VR117JR HSK100A - SFH 12CR - 95 12 24 32 40 95 47 M10x1.0 1.30
VR104JR HSK100A - SFH 12CR - 130 12 24 32 40 130 47 M10x1.0 -
VR118JR HSK100A - SFH 12CR - 160 12 24 32 40 160 47 M10x1.0 1.80
VR119JR HSK100A - SFH 14CR - 95 14 27 34 40 95 47 M10x1.0 1.40
VR105JR HSK100A - SFH 14CR - 130 14 27 34 40 130 47 M10x1.0 -
VR120JR HSK100A - SFH 14CR - 160 14 27 34 40 160 47 M10x1.0 1.90
VR121JR HSK100A - SFH 16CR - 100 16 27 34 40 100 50 M12x1.0 1.40
VR106JR HSK100A - SFH 16CR - 130 16 27 34 40 130 50 M12x1.0 -
VR122JR HSK100A - SFH 16CR - 160 16 27 34 40 160 50 M12x1.0 1.90
VR123JR HSK100A - SFH 18CR - 100 18 33 42 - 100 50 M12x1.0 1.50
VR107JR HSK100A - SFH 18CR - 130 18 33 42 - 130 50 M12x1.0 -
VR124JR HSK100A - SFH 18CR - 160 18 33 42 - 160 50 M12x1.0 2.00
VR125JR HSK100A - SFH 20CR - 100 20 33 42 - 100 52 M16x1.0 1.50
VR108JR HSK100A - SFH 20CR - 130 20 33 42 - 130 52 M16x1.0 -
VR126JR HSK100A - SFH 20CR - 160 20 33 42 - 160 52 M16x1.0 2.00
VR127JR HSK100A - SFH 25CR - 115 25 44 53 - 115 58 M16x1.0 1.80
VR109JR HSK100A - SFH 25CR - 130 25 44 53 - 130 58 M16x1.0 -
VR128JR HSK100A - SFH 25CR - 160 25 44 53 - 160 58 M16x1.0 2.30
