  SHRINK FIT HOLDER
SHRINK FIT HOLDER BT

  SHRINK FIT HOLDER BT

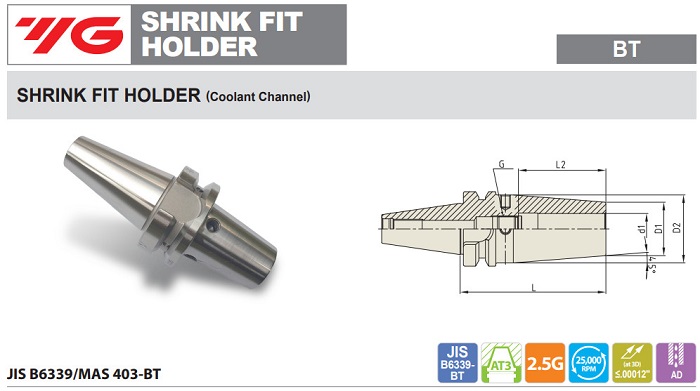

TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No.
30BT30AD/B - SFH1/8-2.36 0.125 0.394 0.748 2.360 0.354 -VG020
BT30AD/B - SFH3/16-2.36 0.188 0.394 0.748 2.360 0.472 -VG022
BT30AD/B - SFH1/4-2.36 0.250 0.827 1.063 2.360 1.417 M5x0.8mmVG024
BT30AD/B - SFH3/8-2.36 0.375 0.945 1.260 2.360 1.654 M8x1.0mmVG026
BT30AD/B - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mmVG028
BT30AD/B - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mmVG030
BT30AD/B - SFH3/4-3.54 0.750 1.299 1.654 3.540 2.047 M16x1.0mmVG032
40BT40AD/B - SFH1/8-3.54 0.125 0.394 0.748 3.150 0.354 -VH020
BT40AD/B - SFH3/16-3.54 0.188 0.394 0.748 3.150 0.472 -VH022
BT40AD/B - SFH1/4-3.54 0.250 0.827 1.063 3.540 1.417 M5x0.8mmVH024
BT40AD/B - SFH1/4-6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mmVH026
BT40AD/B - SFH3/8-3.54 0.375 0.945 1.260 3.540 1.654 M8x1.0mmVH028
BT40AD/B - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mmVH030
BT40AD/B - SFH1/2-3.54 0.500 0.945 1.260 3.540 1.850 M10x1.0mmVH032
BT40AD/B - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mmVH034
BT40AD/B - SFH5/8-3.54 0.625 1.063 1.339 3.540 1.969 M12x1.0mmVH036
BT40AD/B - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mmVH038
BT40AD/B - SFH3/4-3.54 0.750 1.299 1.654 3.540 2.047 M16x1.0mmVH040
BT40AD/B - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mmVH042
BT40AD/B - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mmVH044
BT40AD/B - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mmVH046
