  SHRINK FIT HOLDER

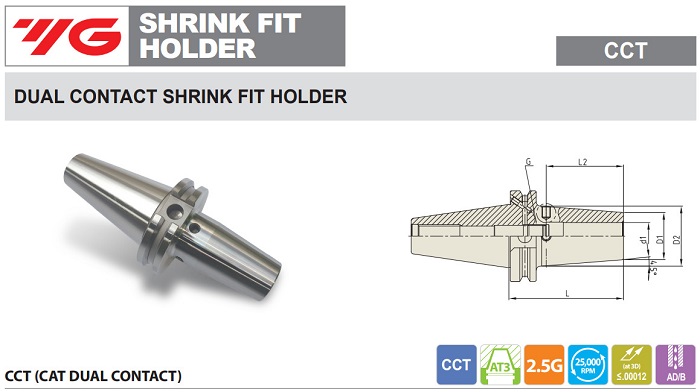

DUAL CONTACT SHRINK FIT HOLDER CCT

  DUAL CONTACT SHRINK FIT HOLDER CCT
TAPER No. MODEL No. d1 D1 D2 L L2 G FIG EDP No.
40CCT40AD/B - SFH1/8-3.15 0.125 0.394 0.748 3.150 0.354 -1VB020
CCT40AD/B - SFH3/16-3.15 0.188 0.394 0.748 3.150 0.472 -VB022
CCT40AD/B - SFH1/4-3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mmVB024
CCT40AD/B - SFH1/4-6.3 0.250 0.827 1.063 6.300 1.417 M5x0.8mmVB026
CCT40AD/B - SFH3/8-3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mmVB028
CCT40AD/B - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mmVB030
CCT40AD/B - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mmVB032
CCT40AD/B - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mmVB034
CCT40AD/B - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mmVB036
CCT40AD/B - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mmVB038
CCT40AD/B - SFH3/4-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mmVB040
CCT40AD/B - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mmVB042
CCT40AD/B - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mmVB044
CCT40AD/B - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mmVB046
CCT40AD/B - SFH1-1/4-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mmVB048
CCT40AD/B - SFH1-1/4-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mmVB050
50CCT50AD/B - SFH1/8-3.15 0.125 0.394 0.748 3.150 0.354 -2VC020
CCT50AD/B - SFH3/16-3.15 0.188 0.394 0.748 3.150 0.472 -VC022
CCT50AD/B - SFH1/4-3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mmVC024
CCT50AD/B - SFH1/4-6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mmVC026
CCT50AD/B - SFH3/8-3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mmVC028
CCT50AD/B - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mmVC030
CCT50AD/B - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mmVC032
CCT50AD/B - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mmVC034
CCT50AD/B - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mmVC036
CCT50AD/B - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mmVC040
CCT50AD/B - SFH3/4-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mmVC042
CCT50AD/B - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mmVC044
CCT50AD/B - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mmVC046
CCT50AD/B - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mmVC048
CCT50AD/B - SFH1-1/4-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mmVC050
CCT50AD/B - SFH1-1/4-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mmVC052
