Rotary Tooling
  SHRINK FIT HOLDER

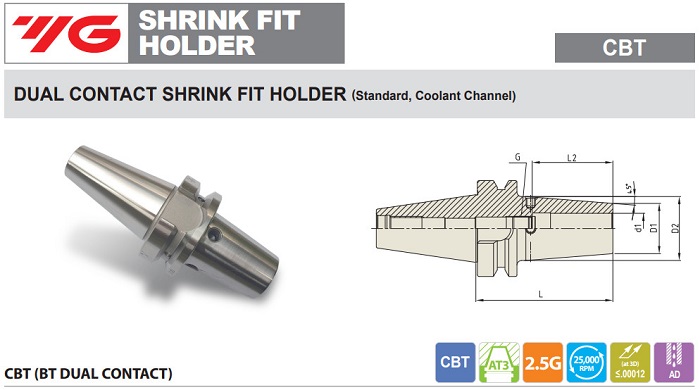

DUAL CONTACT SHRINK FIT HOLDER CBT

  DUAL CONTACT SHRINK FIT HOLDER CBT
TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No.
30CBT30 - SFH1/8-2.36 0.125 0.394 0.748 3.150 0.354 -VD020
CBT30 - SFH3/16-2.36 0.188 0.394 0.748 3.150 0.472 -VD022
CBT30 - SFH1/4-2.36 0.250 0.827 1.063 3.150 1.417 M5x0.8mmVD024
CBT30 - SFH3/8-2.36 0.375 0.945 1.260 3.150 1.654 M8x1.0mmVD026
CBT30 - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mmVD028
CBT30 - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mmVD030
CBT30 - SFH3/4-3.54 0.750 1.299 1.654 3.150 2.047 M16x1.0mmVD032
40CBT40 - SFH1/8-3.54 0.125 0.394 0.748 3.540 0.354 -VE020
CBT40 - SFH3/16-3.54 0.188 0.394 0.748 3.540 0.472 -VE022
CBT40 - SFH1/4-3.54 0.250 0.827 1.063 3.540 1.417 M5x0.8mmVE024
CBT40 - SFH1/4-6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mmVE026
CBT40 - SFH3/8-3.54 0.375 0.945 1.260 3.540 1.654 M8x1.0mmVE028
CBT40 - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mmVE030
CBT40 - SFH1/2-3.54 0.500 0.945 1.260 3.540 1.850 M10x1.0mmVE032
CBT40 - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mmVE034
CBT40 - SFH5/8-3.54 0.625 1.063 1.339 3.540 1.969 M12x1.0mmVE036
CBT40 - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mmVE038
CBT40 - SFH3/4-3.54 0.750 1.299 1.654 3.540 2.047 M16x1.0mmVE040
CBT40 - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mmVE042
CBT40 - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mmVE044
CBT40 - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mmVE046
