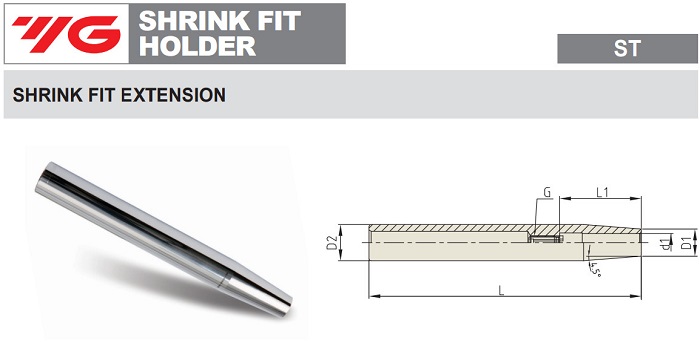

SHRINK FIT EXTENSION (Standard) - ST - METRIC

EDP No. Shank
Diameter		 MODEL No. d1 D1 D2 L L1 G
VS010M 12 ST12 - SFH 3 - 120 3 8 12 120 10 -
VS011M ST12 - SFH 4 - 120 4 8 12 120 12 -
VS012M ST12 - SFH 5 - 120 5 10 12 120 15 -
VS013M ST12 - SFH 6 - 120 6 10 12 120 36 M5×0.8
VS020M 16 ST16 - SFH 3 - 120 3 10 16 120 10 -
VS021M ST16 - SFH 4 - 120 4 10 16 120 12 -
VS022M ST16 - SFH 5 - 120 5 10 16 120 15 -
VS023M ST16 - SFH 6 - 120 6 10 16 120 36 M5×0.8
VS024M ST16 - SFH 8 - 120 8 12 16 120 36 M6×1.0
VS030M 20 ST20 - SFH 3 - 120 3 10 20 120 10 -
VS031M ST20 - SFH 4 - 120 4 10 20 120 12 -
VS032M ST20 - SFH 5 - 120 5 10 20 120 15 -
VS033M ST20 - SFH 6 - 120 6 10 20 120 36 M5×0.8
VS034M ST20 - SFH 8 - 120 8 12 20 120 36 M6×1.0
VS035M ST20 - SFH 10 - 120 10 14 20 120 43 M8×1.0
VS036M ST20 - SFH 12 - 120 12 16 20 120 48 M10×1.0
