Rotary Tooling

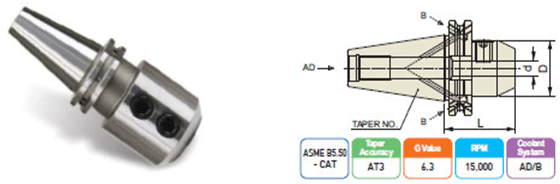

  END MILL HOLDER
END MILL HOLDER STANDARD CAT

  END MILL HOLDER STANDARD CAT
TAPER No. MODEL No. d L D EDP No.
CAT40CAT40AD/B - EMH 1/8 - 2.50 0.125 2.50 0.69 AK000B
CAT40AD/B - EMH 3/16 - 2.50 0.187 2.50 0.69 AK001B
CAT40AD/B - EMH 1/4 - 2.50 0.250 2.50 0.78 AK002B
CAT40AD/B - EMH 5/16 - 2.50 0.312 2.50 0.88 AK003B
CAT40AD/B - EMH 3/8 - 2.50 0.375 2.50 1.00 AK004B
CAT40AD/B - EMH 7/16 - 2.50 0.437 2.50 1.13 AK005B
CAT40AD/B - EMH 1/2 - 2.50 0.500 2.50 1.25 AK006B
CAT40AD/B - EMH 5/8 - 3.75 0.625 3.75 1.50 AK008B
CAT40AD/B - EMH 3/4 - 3.75 0.750 3.75 1.75 AK010B
CAT40AD/B - EMH 7/8 - 4.00 0.875 4.00 1.88 AK012B
CAT40AD/B - EMH 1 - 4.00 1.000 4.00 2.00 AK014B
CAT40AD/B - EMH 1 1/4 - 4.25 1.250 4.25 2.50 AK017B
CAT40AD/B - EMH 1 1/2 - 4.63 1.500 4.63 2.50 AK021B
CAT50CAT50AD/B - EMH 1/4 - 2.50 0.250 2.50 0.78 AL002B
CAT50AD/B - EMH 5/16 - 2.50 0.312 2.50 0.88 AL003B
CAT50AD/B - EMH 3/8 - 2.50 0.375 2.50 1.00 AL004B
CAT50AD/B - EMH 7/16 - 2.63 0.437 2.63 1.13 AL005B
CAT50AD/B - EMH 1/2 - 2.63 0.500 2.63 1.25 AL006B
CAT50AD/B - EMH 5/8 - 3.75 0.625 3.75 1.50 AL008B
CAT50AD/B - EMH 3/4 - 3.75 0.750 3.75 1.75 AL010B
CAT50AD/B - EMH 7/8 - 3.75 0.875 3.75 1.88 AL012B
CAT50AD/B - EMH 1 - 4.00 1.000 4.00 2.00 AL014B
CAT50AD/B - EMH 1 1/4 - 4.00 1.250 4.00 2.50 AL017B
CAT50AD/B - EMH 1 1/2 - 4.00 1.500 4.00 2.50 AL021B
CAT50AD/B - EMH 2 - 5.63 2.000 5.63 3.75 AL029B
