Rotary Tooling

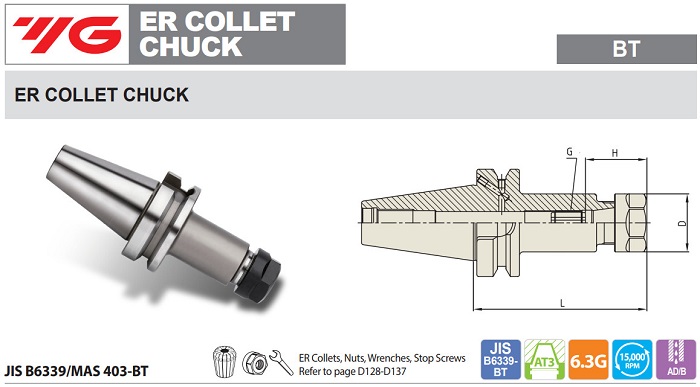

  ER COLLET CHUCK
ER COLLET CHUCK BT

  ER COLLET CHUCK BT
TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES EDP No.
STUBUnit: inch
TAPER No.MODEL No.CLAMPING RANGELDCOLLET SERIESEDP No.
40BT40AD/B - ER20 - 2.200.039-0.5112.20 1.26 ER20BH232B
BT40AD/B - ER25 - 2.500.039-0.6292.50 1.65 ER25BH233B
BT40AD/B - ER32 - 2.400.078-0.7872.40 1.88 ER32BH234B
STANDARDUnit: inch
TAPER No.MODEL No.CLAMPING RANGELDCOLLET SERIESEDP No.
40BT40 AD/B - ER11 - 3.000.063-0.2503.00 0.63 ER11 BH030B
BT40 AD/B - ER16 - 3.000.031-0.4063.00 1.08 ER16 BH031B
BT40 AD/B - ER20 - 4.000.039-0.5114.00 1.26 ER20BH032B
BT40 AD/B - ER25 - 4.000.039-0.6294.00 1.65 ER25BH133B
BT40 AD/B - ER32 - 4.000.078-0.7874.00 1.88 ER32BH134B
BT40 AD/B - ER40 - 4.000.118-1.0244.00 2.48 ER40 BH136B
EXTENDEDUnit: inch
TAPER No.MODEL No.CLAMPING RANGELDCOLLET SERIESEDP No.
40BT40 AD/B - ER16 - 6.000.031-0.4066.00 1.08 ER16 BH331B
BT40 AD/B - ER20 - 6.000.039-0.5116.00 1.26 ER20BH332B
BT40 AD/B - ER25 - 6.000.039-0.6296.00 1.65 ER25BH333B
BT40 AD/B - ER32 - 6.000.078-0.7876.00 1.88 ER32BH334B
EXTENDEDUnit: inch
TAPER No.MODEL No.CLAMPING RANGELDCOLLET SERIESEDP No.
40BT40 AD/B- ER20 - 8.000.039-0.5118.00 1.26 ER20BH432B
