Rotary Tooling

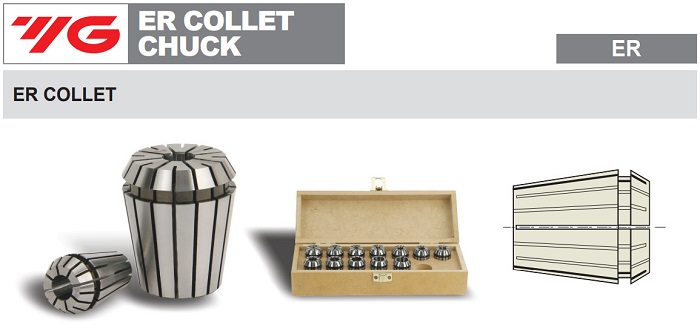

ER COLLET (METRIC TYPE)

  ER COLLET (METRIC TYPE)
TYPE ER8 CLAMPING CAPACITY
2080101.0-0.5
2080151.5-1.0
2080202.0-1.5
2080252.5-2.0
2080303.0-2.5
2080353.5-3.0
2080404.0-3.5
2080454.5-4.0
2080505.0-4.5
208000STANDARD SET (Φ1.0 to 5.0mm) 9pcs
TYPE ER11CLAMPING CAPACITY
2110101.0-0.5
2110151.5-1.0
2110202.0-1.5
2110252.5-2.0
2110303.0-2.5
2110353.5-3.0
2110404.0-3.5
2110454.5-4.0
2110505.0-4.5
2110555.5-5.0
2110606.0-5.5
2110656.5-6.0
2110707.0-6.5
211000STANDARD SET (Φ1.0 to 7.0mm) 13pcs
TYPE ER16CLAMPING CAPACITY
2160101.0-0.5
2160151.5-1.0
2160202.0-1.0
2160252.5-2.0
2160303.0-2.0
2160404.0-3.0
2160505.0-4.0
2160606.0-5.0
2160707.0-6.0
2160808.0-7.0
2160909.0-8.0
21610010.0-9.0
216000STANDARD SET (Φ1.0 to 10.0mm) 10pcs
TYPE ER20CLAMPING CAPACITY
2200101.0-0.5
2200151.5-1.0
2200202.0-1.0
2200252.5-2.0
2200303.0-2.0
2200404.0-3.0
2200505.0-4.0
2200606.0-5.0
2200707.0-6.0
2200808.0-7.0
2200909.0-8.0
22010010.0-9.0
22011011.0-10.0
22012012.0-11.0
22013013.0-12.0
220000STANDARD SET (Φ2.0 to 13.0mm) 12pcs
TYPE ER25CLAMPING CAPACITY
2250101.0-1.5
2250151.5-1.0
2250202.0-1.0
2250252.5-2.0
2250303.0-2.0
2250404.0-3.0
2250505.0-4.0
2250606.0-5.0
2250707.0-6.0
2250808.0-7.0
2250909.0-8.0
22510010.0-9.0
22511011.0-10.0
22512012.0-11.0
22513013.0-12.0
22514014.0-13.0
22515015.0-14.0
22516016.0-15.0
225000 STANDARD SET (Ø 2.0-16.0mm) 15pcs
TYPE ER32CLAMPING CAPACITY
232020 2.0-1.0
232025 2.5-2.0
232030 3.0-2.0
232040 4.0-3.0
232050 5.0-4.0
232060 6.0-5.0
232070 7.0-6.0
232080 8.0-7.0
232090 9.0-8.0
232100 10.0-9.0
232110 11.0-10.0
232120 12.0-11.0
232130 13.0-12.0
232140 14.0-13.0
232150 15.0-14.0
232160 16.0-15.0
232170 17.0-16.0
232180 18.0-17.0
232190 19.0-18.0
232200 20.0-19.0
232000 STANDARD SET (Ø 3.0-20.0mm) 18pcs
TYPE ER40CLAMPING CAPACITY
240030 3.0-2.0
2400404.0-3.0
2400505.0-4.0
2400606.0-5.0
2400707.0-6.0
2400808.0-7.0
2400909.0-8.0
24010010.0-9.0
24011011.0-10.0
24012012.0-11.0
24013013.0-12.0
24014014.0-13.0
24015015.0-14.0
24016016.0-15.0
24017017.0-16.0
24018018.0-17.0
24019019.0-18.0
24020020.0-19.0
24021021.0-20.0
24022022.0-21.0
24023023.0-22.0
24024024.0-23.0
24025025.0-24.0
24026026.0-25.0
24027027.0-26.0
24028028.0-27.0
24029029.0-28.0
24030030.0-29.0
240000 STANDARD SET (Ø 4.0-26.0mm) 23pcs
TYPE ER50CLAMPING CAPACITY
2500606.0-4.0
2500808.0-6.0
25010010.0-8.0
25012012.0-10.0
25014014.0-12.0
25016016.0-14.0
25018018.0-16.0
25020020.0-18.0
25022022.0-20.0
25024024.0-22.0
25025025.0-23.0
25026026.0-24.0
25028028.0-26.0
25030030.0-28.0
25032032.0-30.0
25034034.0-32.0
250000 STANDARD SET (Ø 12.0-34.0mm) 12pcs
