Rotary Tooling

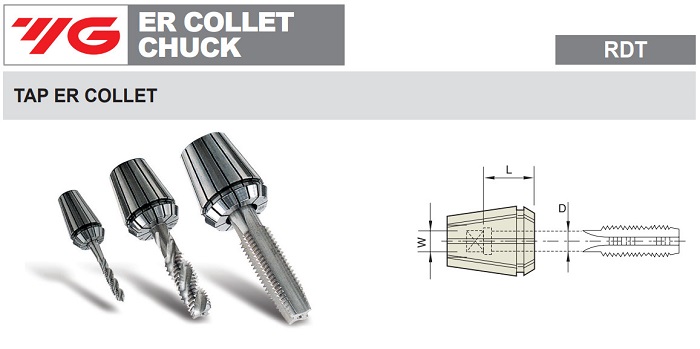

  ER COLLET CHUCK
TAP ER COLLET (METRIC TYPE)

  TAP ER COLLET (METRIC TYPE)
EDP No TAP D(Φ) W(□) L
RDT 16
16T30025M2 3.0 2.5 15
16T40032M3 4.0 3.2 15
16T50040M4 5.0 4.0 15
16T55045M5 5.5 4.5 15
16T60045M6 6.0 4.5 15
16T62050M8 6.2 5.0 15
RDT 20
20T40032M3 4.0 3.2 15
20T50040M4 5.0 4.0 15
20T55045M5 5.5 4.5 15
20T60045M6 6.0 4.5 15
20T62050M8 6.2 5.0 20
20T70055M10 7.0 5.5 20
RDT 25
25T40032M3 4.0 3.2 15
25T50032M4 5.0 4.0 15
25T55045M5 5.5 4.5 15
25T60045M6 6.0 4.5 15
25T62050M8 6.2 5.0 20
25T70055M10 7.0 5.5 20
25T85065M12 8.5 6.5 20
25T10580M14 10.5 8.0 20
RDT 32
32T50040M4 5.0 4.0 15
32T55045M5 5.5 4.5 15
32T60045M6 6.0 4.5 15
32T62050M8 6.2 5.0 20
32T70055M10 7.0 5.5 20
32T85065M12 8.5 6.5 20
32T10560M14 10.5 8.0 20
32T12510M16 12.5 10.0 20
32T14011M18 14.0 11.0 20
RDT 40
40T62050M8 6.2 5.0 20
40T70055M10 7.0 5.5 20
40T85065M12 8.5 6.5 25
40T10580M14 10.5 8.0 25
40T12510M16 12.5 10.0 25
40T14011M18 14.0 11.0 25
40T15012M20 15.0 12.0 25
40T17013M22 17.0 13.0 25
40T19015M24 19.0 15.0 25
