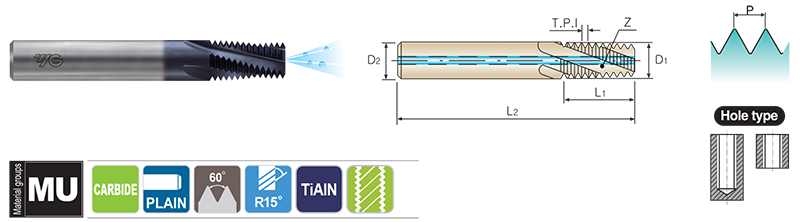

THREAD MILLS CARBIDE NPT TIALN COATED COOLANT - L621F series
|
|
|
|
|
|
|
|
| EDP |
Size |
Pitch |
Cutter Diamter |
Shank Diameter |
Thread Length |
Overall Length |
No. of Flute |
| TiAlN |
TPI |
D1 |
D2 |
L1 |
L2 |
Z |
| L621F020 | 1/6 & 1/8 | 27 | 0.245 | 0.25 | 0.437 | 2.5 | 3 |
| L621F400 | 1/4 & 3/8 | 18 | 0.305 | 0.312 | 0.625 | 3 | 4 |
| L621F480 | 1/4 & 3/8 | 18 | 0.363 | 0.375 | 0.68 | 3.5 | 4 |
| L621F560 | 1/2 & 3/4 | 14 | 0.495 | 0.5 | 0.875 | 3.5 | 4 |
| L621F780 | 1" - 2" | 11.5 | 0.62 | 0.625 | 1.125 | 4 | 4 |
| L621FF40 | 2-1/2" - 6" | 8 | 0.745 | 0.75 | 1.5 | 5 | 4 |
|
|
 |
|
