Thread Mills Home > Thread Mills > Thread Mills

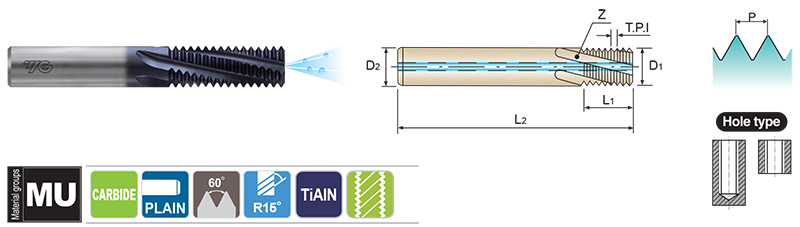

THREAD MILLS CARBIDE NPS TIALN COATED COOLANT - L421K series

SIZE Pitch EDP No. Cutter Diameter Shank Diameter Thread Length Overall Length No. of Flute
T.P.I TiAlN D1 D2 L1 L2 Z
1/8 27 L421K020 0.245 0.250 0.556 2.500 3
1/4 & 3/8 18 L421K400 0.363 0.375 0.833 3.500 4
1/2 & 3/4 14 L421K560 0.495 0.500 1.071 3.500 4
1-2 11.5 L421K780 0.620 0.625 1.304 4.000 4
