Tapping Home >

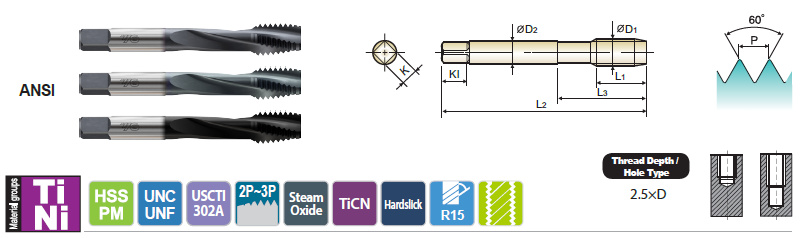

Spiral Flute Tap Modified Bottoming Style for Titanium Alloys & Nickel Base Alloys up to HRc38 ~ HRc45 - B3 / B5 / D6 SERIES
View TAP SELECTOR / CUTTING DATA

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide TiCN Hardslick L2 L1 L3 D2 K KI
#2 56UNC B3082 B5082 D6082 H2 1.752 0.157 0.433 0.141 0.110 0.190 3
#4 40UNC B3162 B5162 D6162 H2 1.874 0.236 0.563 0.141 0.110 0.190 3
#5 40UNC B3202 B5202 D6202 H2 1.937 0.236 0.626 0.141 0.110 0.190 3
#6 32UNC B3243 B5243 D6243 H3 2.000 0.276 0.689 0.141 0.110 0.190 3
#8 32UNC B3283 B5283 D6283 H3 2.126 0.276 0.752 0.168 0.131 0.250 3
#10 24UNC B3323 B5323 D6323 H3 2.374 0.354 0.906 0.194 0.152 0.250 3
#10 32UNF B3343 B5343 D6343 H3 2.374 0.276 0.906 0.194 0.152 0.250 3
1/4 20UNC B3403 B5403 D6403 H3 2.500 0.433 1.000 0.255 0.191 0.310 3
1/4 20UNC B3405 B5405 D6405 H5 2.500 0.433 1.000 0.255 0.191 0.310 3
1/4 28UNF B3423 B5423 D6423 H3 2.500 0.354 1.000 0.255 0.191 0.310 3
1/4 28UNF B3424 B5424 D6424 H4 2.500 0.354 1.000 0.255 0.191 0.310 3
5/16 18UNC B3443 B5443 D6443 H3 2.720 0.472 1.126 0.318 0.238 0.380 3
5/16 18UNC B3445 B5445 D6445 H5 2.720 0.472 1.126 0.318 0.238 0.380 3
5/16 24UNF B3463 B5463 D6463 H3 2.720 0.394 1.126 0.318 0.238 0.380 3
3/8 16UNC B3483 B5483 D6483 H3 2.937 0.551 1.252 0.381 0.286 0.440 3
3/8 16UNC B3485 B5485 D6485 H5 2.937 0.551 1.252 0.381 0.286 0.440 3
3/8 24UNF B3503 B5503 D6503 H3 2.937 0.394 1.252 0.381 0.286 0.440 3
3/8 24UNF B3504 B5504 D6504 H4 2.937 0.394 1.252 0.381 0.286 0.440 3
7/16 14UNC B3523 B5523 D6523 H3 3.157 0.591 1.850 0.323 0.242 0.410 3
7/16 14UNC B3525 B5525 D6525 H5 3.157 0.591 1.850 0.323 0.242 0.410 3
7/16 20UNF B3543 B5543 D6543 H3 3.157 0.472 1.850 0.323 0.242 0.410 3
7/16 20UNF B3545 B5545 D6545 H5 3.157 0.472 1.850 0.323 0.242 0.410 3
1/2 13UNC B3563 B5563 D6563 H3 3.374 0.630 2.067 0.367 0.275 0.440 3
1/2 13UNC B3565 B5565 D6565 H5 3.374 0.630 2.067 0.367 0.275 0.440 3
1/2 20UNF B3583 B5583 D6583 H3 3.374 0.472 2.067 0.367 0.275 0.440 3
1/2 20UNF B3585 B5585 D6585 H5 3.374 0.472 2.067 0.367 0.275 0.440 3
9/16 12UNC B3603 B5603 D6603 H3 3.594 0.709 2.067 0.429 0.322 0.500 3
9/16 12UNC B3605 B5605 D6605 H5 3.594 0.709 2.067 0.429 0.322 0.500 3
9/16 18UNF B3623 B5623 D6623 H3 3.594 0.512 2.067 0.429 0.322 0.500 3
9/16 18UNF B3625 B5625 D6625 H5 3.594 0.512 2.067 0.429 0.322 0.500 3
5/8 11UNC B3643 B5643 D6643 H3 3.811 0.748 2.205 0.480 0.360 0.560 4
5/8 11UNC B3645 B5645 D6645 H5 3.811 0.748 2.205 0.480 0.360 0.560 4
5/8 18UNF B3663 B5663 D6663 H3 3.811 0.512 2.205 0.480 0.360 0.560 4
5/8 18UNF B3665 B5665 D6665 H5 3.811 0.512 2.205 0.480 0.360 0.560 4
3/4 10UNC B3703 B5703 D6703 H3 4.252 0.827 2.480 0.590 0.442 0.690 4
3/4 10UNC B3705 B5705 D6705 H5 4.252 0.827 2.480 0.590 0.442 0.690 4
3/4 16UNF B3723 B5723 D6723 H3 4.252 0.591 2.480 0.590 0.442 0.690 4
3/4 16UNF B3725 B5725 D6725 H5 4.252 0.591 2.480 0.590 0.442 0.690 4
